Product Overview

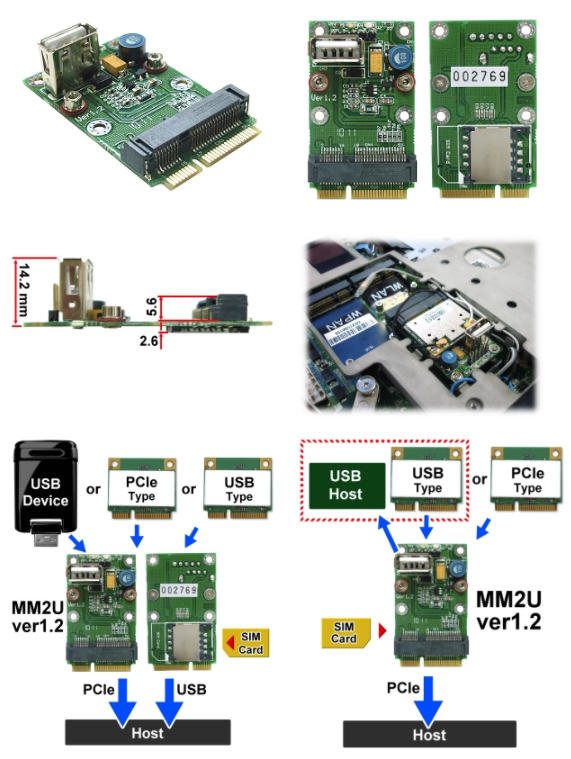

MM2U (Half to Full minicard adapter ver1.2)
Introduction:
The MM2U half to full mini card is a converter tool for minicard interface.
This module allows you to use your half mini card in the full mini card slot. And allows you plug a USB2.0 device to this adapter
It's especially designed to save valuable labor and time in the production environment.
Features
- Supports half mini card to full size minicard slot.
- Add PTC fuse protect your circuit.
- Add 3V to 5V, DC2DC circuit.
- Add USB 2.0 connector and 2.54mm pitch 5PIN USB 2.0 connector.
- Add Power LED, Access LED.
- High quality connectors for long service life.
System Requirements
- MiniCard full size slot
Dimension
- Width 30mm, Length 51mm, PCB Thickness 1.0mm Max
|
Functions comparison
|
MM2U Ver 1.0a
|
MM2U Ver 1.2
|
MM2U-C Ver1.0a
|
MM2U-S Ver1.1
|
|
PCIE Type
|
Yes
|
Yes
|
Yes
|
Yes
|
|
USB Type
|
Yes
|
Yes
|
Yes
|
Yes
|
|
SIM card connector
|
No
|
Yes
|
No
|
Yes
|
|
Mini card dimension support
|
Half
|
Half
|
Half
|
Half
|
|
USB device
|
Yes
|
Yes
|
No
|
No
|
|
3V to 5V DC2DC circuit
|
Yes
|
Yes
|
No
|
No
|
|
USB 5V Power LED
|
Yes
|
Yes
|
No
|
No
|
|
Access LED
|
Yes
|
Yes
|
No
|
No
|
| Documents Download | |||
| ver1.2 Brief |  Taiwan 1 |
 Taiwan 2 Mirror |
 China Mirror |
| ver1.2 Dimension | Taiwan 1 |
Taiwan 2 Mirror |
China Mirror |
| ver1.2 Schematic | Taiwan 1 |
Taiwan 2 Mirror |
China Mirror |
| ver1.0 Brief | Taiwan 1 |
Taiwan 2 Mirror |
China Mirror |
| ver1.0 Dimension | Taiwan 1 |
Taiwan 2 Mirror |
China Mirror |
| ver1.0 Schematic | Taiwan 1 |
Taiwan 2 Mirror |
China Mirror |
| Comparison table | Taiwan 1 |
Taiwan 2 Mirror |
China Mirror |
