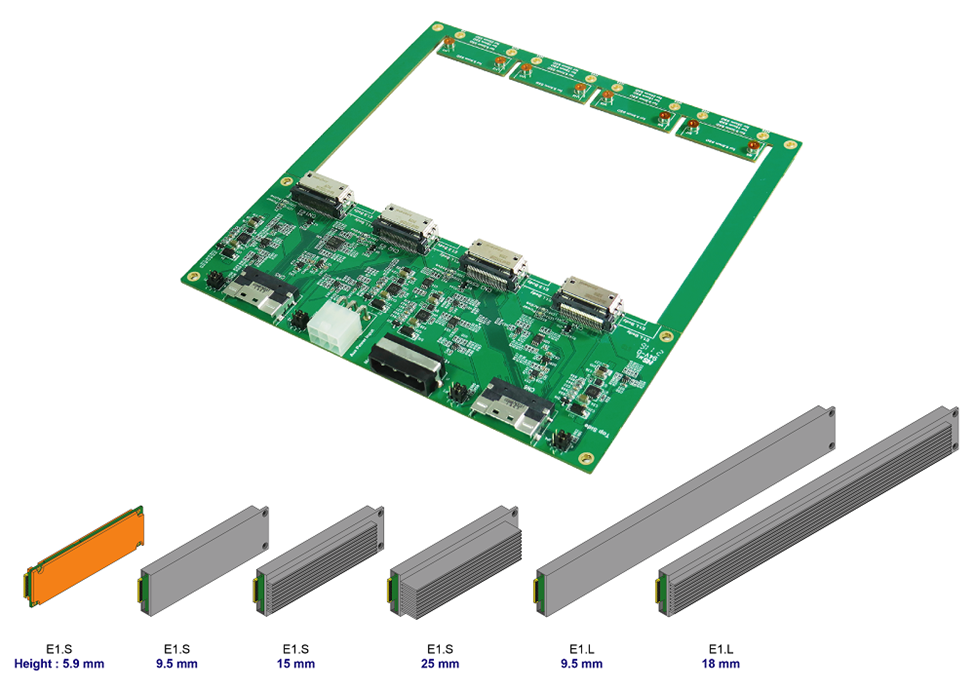

GD9602A (SLIMSAS 8I X2 TO EDSFF 1C (GEN-Z) X4 SSD ADAPTER)

GD9602A (SLIMSAS 8I X2 TO EDSFF 1C (GEN-Z) X4 SSD ADAPTER)

Contact support@mfactors.com to order
Unavailable
Current Stock:Only left:
Description
  • Gen-Z 1C Quad port to SlimSAS 8i(SFF-8654) convert
  • Built-in SFF-8654 8i two connectors, pin-out defined by SFF-9402 Rev1.1
  • Built-in Gen-Z 1C four connectors
  • Built-in 12V Hot Plug Power with eFuse protection for each Gen-Z 1C
  • ◆ Programmable Current Limit: 6.5A
  • ◆ Programmable Inrush Current Slew Rate
  • ◆ Thermal shutdown protection and fault alert
  • ◆ Back-to-Back (B2B) FET Operation

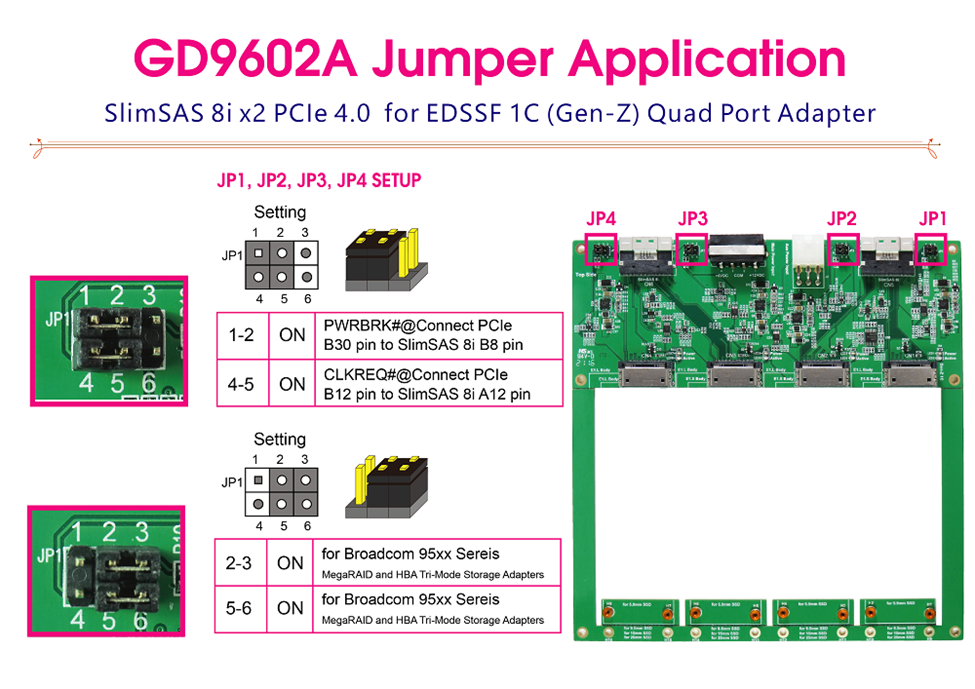

  • Supports Gen-Z 1C to PCIe CLKREQ#, WAKE#, PWRBRK#
  • Supports Gen-Z 1C PWRDIS, SMBRST# control
  • Built-in SMBus Hot Swappable 2-Wire Bus Buffer for each Gen-Z 1C
  • Supports SlimSAS 8i BP_TYPEA, BP_TYPEB Pull up for Broadcom 95xx PCIe 4.0 MegaRAID and HBA Tri-Mode Storage Adapters
  • Supports SlimSAS 8i CPRSNTA#, CPRSNTB# Pull Low for Broadcom 95xx PCIe 4.0 MegaRAID and HBA Tri-Mode Storage Adapters
  • LED1, LED3,LED5, LED7 Green LED on indicates Gen-Z 1C power ready
  • LED2, LED4,LED6, LED8 Red LED Blinking indicates Gen-Z 1C active status
