Product Overview

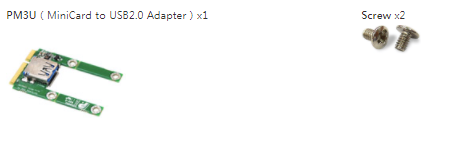

PM3U (MiniCard to USB2.0 Adapter)
Introduction:

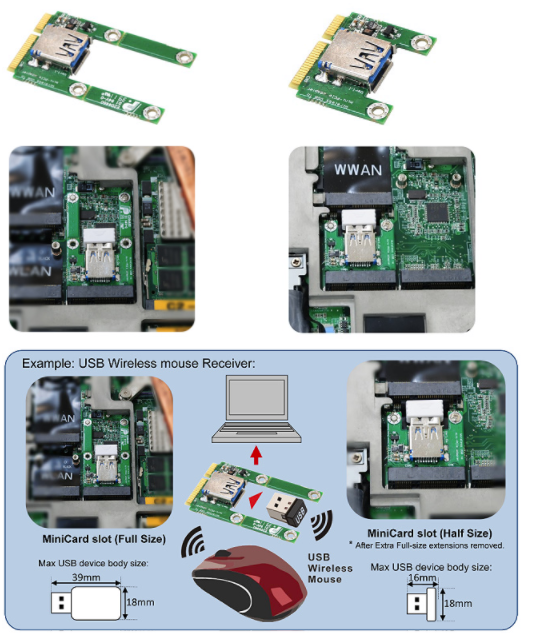

PM3U is adapter for MiniCard (miniPCIe with USB I/F) slot to USB2.0 interface.
It is very suitable for any small size USB device into laptop PC to be built-in, such as;
- Wireless Mouse USB Receiver
- USB bluetooth adatpter
- USB WiFi adatper
- USB Flash memory
- USB Card Reader for micorSD / M2
Not only for Full-size MiniCard adapter but also Half-size MiniCard by removing extra Full-size extensions.
Function:
- Allows your laptop PC to save an external USB slot. Insert your small USB device in the Laptop PC.
- Transparent to the operating system and does not require any software drivers.
- Both Full and Half size of MiniCard Slots are supported.
Notice:
USB2.0 Bus connection regardless of USB3.0 connector.
System Requirements:
MiniCard slot with USB2.0 interface
(Full or Half size)
Documents Download |
|||
Brief | Taiwan | Taiwan 2 | China Mirror |
Dimension | Taiwan | Taiwan 2 | China Mirror |
Schematic | Taiwan | Taiwan 2 | China Mirror |
