WPEA-352ACNRBI 802.11ac/a/b/g/n Industrial Grade Mini PCIe Module, Qualcomm QCA9890-BR4B, 3T3R

 ‧ Standard: 802.11ac/a/b/g/n

‧ Military Temperature: -40~+85°C
‧ Host interface: Mini PCI-E
‧ Chipset: Qualcomm Atheros QCA9890-BR4B
‧ Antenna: 3 x IPEX connectors, 3T3R
‧ Data rate up to 1.3Gbps
‧ Enhanced wireless security: WEP, WPA, WPA2, 802.1x
‧ Support Linux

The WPEA-352ACNRBI is an industrial grade IEEE 802.11ac wireless adapter that operates in 2.4GHz and 5GHz bands, available in mini PCIe form factor. Featuring QCA9890 chipset, the operating temperature range is -40°C~+85°C. The WPEA-352ACNRBI dramatically increases the overall throughput up to 1.3Gbps with 3x3 MIMO technique. Leveraging the revolutionary 11ac technology, WPEA-352ACNRBI set a new benchmark in throughput and range, making it ideal for consumer and enterprise application.

The WPEA-352ACNRBI is powered by Qualcomm Atheros radio chip and features 3x3 11ac/abgn technology for higher throughput performance, reliability and range. It is reliable design for outdoor and rugged environments. High interference immunity for Wi-Fi congested environment and regulatory modular certifications to expedite system integration. It is reliable design for outdoor and rugged environments. High interference immunity for Wi-Fi congested environment and regulatory modular certifications to expedite system integration.

Suitable Application

Application included outdoor Access point , Aviation , Vehicle-mount computer , Traffic  controller , Factory Automation ,Fleet management , Outdoor surveillance.

Specification

Standard

802.11ac/a/b/g/n (3T3R)

Chipset

Mac/BB/RF

Qualcomm Atheros QCA9890-BR4B

Host Interface

PCI Express

Radio

Antenna

3 x IPEX connectors

Operating Frequency

802.11ac/a/b/g/n ISM Band:2.412GHz~2.484GHz,5.150GHz ~ 5.850GHz

*subject to local regulations

Modulation

802.11b: DSSS (DBPSK, DQPSK, CCK)

802.11a/g: OFDM (BPSK, QPSK,16-QAM, 64-QAM)

802.11n: OFDM (BPSK, QPSK,16-QAM, 64-QAM)

802.11ac: OFDM (BPSK, QPSK,16-QAM, 64-QAM, 256-QAM)

Output Power

802.11a: 14dBm ± 2dBm@54Mbps

802.11g: 16dBm ± 2dBm@54Mbps

802.11an (HT20): 13dBm ± 2dBm@MCS7

802.11an (HT40): 13dBm ± 2dBm@MCS7

802.11ac (HT80): 10dBm ± 2dBm@MCS9

Receive Sensitivity

802.11a: ≤ -73dBm@54Mbps

802.11g: ≤ -73dBm@54Mbps

802.11an (HT20): ≤ -71dBm@MCS7

802.11an (HT40): ≤ -68dBm@MCS7

802.11ac (HT80): ≤ -58dBm@MCS9

Power consumption

Continue TX

1360mA (Max)

Operating Voltage

DC 3.3V ± 9% I/O supply voltage

Environmental

Temperature Range

-40°C ~ 85°C (Operating),  -40°C~+85°C (Storage)

Humidity (Non-Condensing)

Operating Humidity (non-condensing): 10% ~ 85%
Storage Humidity (non-condensing): 5% ~ 90%

Physical Specification

Dimension (L x W x H)

 50.8mm x 29.85mm x 4.1mm(±0.5mm)

Weight

 ≤ 8g

Software

Driver

Linux

Security

WEP, WPA, WPA2, WPS, 802.1x

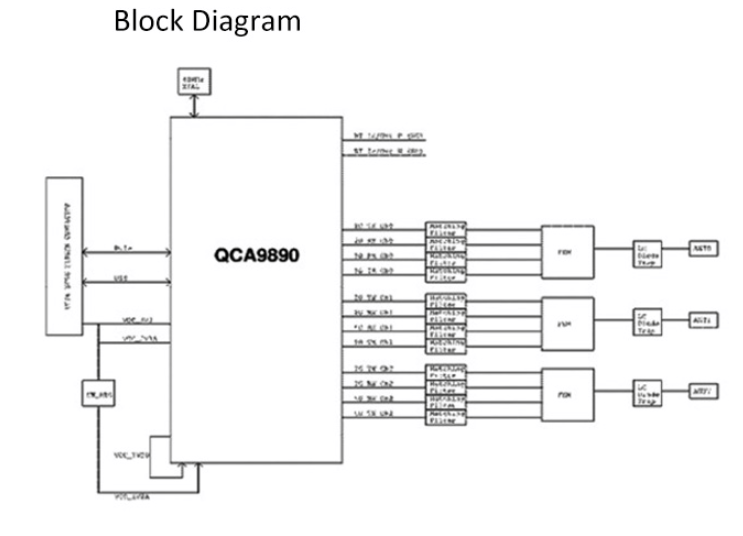

Block Diagram

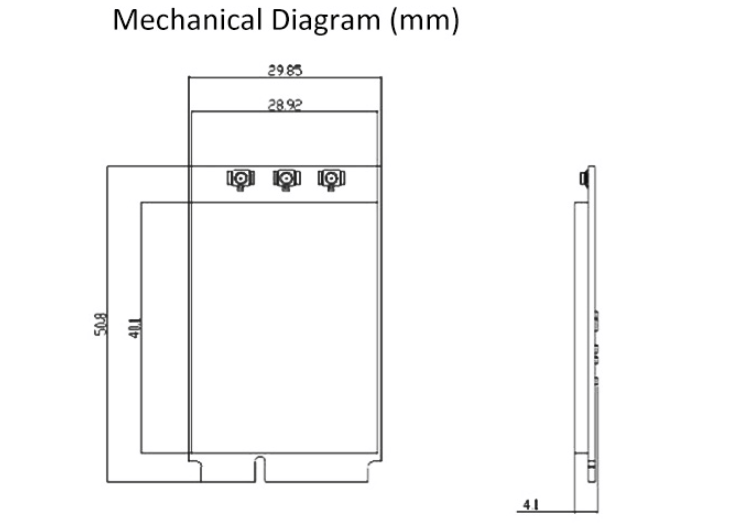

Mechanical Dimension (mm)





Country

Certification

USA

FCC



EU

RED (EN 300 328 V2.1.1 / EN 301 893 V2.1.1)



CANADA

IC



JAPAN

MIC



Download

Document
File Name Type Updated Download
WPEA-352ACNRBI_datasheet ver.1.0_20190123 2019.01.30
