USBMA V1.2 (Wireless USB Mini Card Adapter)

Hover over image to zoom

  • Image 1
  • Module ONLY
$95.00
SKU:
USBMA V1.2
Availability:
Ship in 1-3 business days
Shipping:
Calculated at checkout

 Product Description

USBMA V1.2  (Wireless USB Mini Card Adapter)



The USBMA adapter is designed for desktop PCs that convert Mini-Card to USB port.
You can insert your USB type minicard such as HSPA(3.5G), GPS, 802.11a/b/g to this adapter then plug to USB port through USB cable.
Standard SIM card connector is provided.

Features

  • USB mini type-B connection to desktop or notebook PC.
  • Supports two primary system bus interface: USB.
  • Supports USB interface of Mini-Cards such as 3G,CDMA, WLAN,WWLAN, HSPA MODEM , GPS, WiMAX Mini Card to desktop PC.
  • Support SIM card connector.
  • Support U.FL/IPX to RP-SMA pigtail Wifi RF cable adapter.

Specification

  • USB Mini Card to USB adapter.
  • USB Mini Card Electromechanical Specification Revision 1.2
  • Universal Serial Bus Specification Revision 2.0
  • Full/ Half -Mini Card dimension.
  • SIM Connector for CDMA HSDPA/HSUPA, UMTS, EDGE.
  • Access LED.
  • Operating Temperature Range : - 40℃ to +85℃
  • Operating Humidity Range : 5% to 95% RH

Notice:
USBMA is USB passive adapter. Just only support wireless USB minicard. Can’t support PCIe minicard.
Please check compatibility list for detail.



USBMA-SMA V1.2

USBMA module V1.2

USBMA-RPSMA V1.2

 USBMA-WP-SMA V1.2









USBMA, USBMV, USBMI, USBMS enclosure for wireless minicard comparison                           2011/Dec/22
USBMx  functions comparison
USBMA v1.1
USBMA v1.2
USBMI
USBMI-D
USBMV
USBMV-D
USBMS
USBMS-D
USBMS-E
USBMS-N15
USB2.0 interface
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
PCIe interface
No
No
No
No
No
No
No
No
No
No
AC/DC 3.3V external power input
No
No
No
Yes
No
Yes
No
Yes
Yes
Yes
External access LED
Yes
Yes
Yes
No
Yes
No
Yes
No
Yes x2
No
3.3V output current (typ.)
1500mA
1500mA
2700mA
2700mA
2700mA
2700mA
2700mA
2700mA
2700mA
2700mA
1.5V output current (typ.)
800mA
800mA
1000mA
1000mA
1000mA
1000mA
1000mA
1000mA
1000mA
No
By pass cap. for 3G card peak current
0.047F
0.047F
0.047F
0.047F
0.15F
0.15F
0.22F
0.22F
0.22F
0.22F
SIM card connector
Yes
Yes
Yes
Yes
Yes
Yes
Yes (Push)
Yes (Push)
Yes (Push)
Yes (Push)
MIC/EAR connector
No
No
No
No
Yes
Yes
Yes
Yes
No
Yes
MiniCard dimension support
Full/Half
Full/Half
Full/Half
Full/Half
Full/Half
Full/Half
Full/Half
Full/Half
Full/Half
Full/Half
Caution:
1. USBMS-E design for Ericsson module support wake function.
2. USBMS-N15 design for SierraWireless, LONGCHEER module using



USBMA module V1.2

Package Contents


Unit Price: USD $68

USBMA module V1.2 x1

Y05-U04-060 (USB 2.0 A Male to B Mini 5 Pin Cable 60cm) x1

Y05-U02-060 (USB Dupont to 5PIN Cable) x1

Screw x2





USBMA-SMA V1.2

Package Contents


Unit Price: USD $ 95

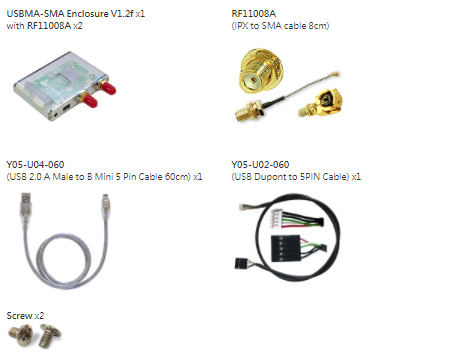

USBMA V1.2 x1 with IPX to SMA cable x2

IPX to SMA cable 8cm

Y05-U04-060 (USB 2.0 A Male to B Mini 5 Pin Cable 60cm) x1









Y05-U02-060 (USB Dupont to 5PIN Cable) x1

Screwdriver x1

Screw x2







USBMA-RPSMA V1.2

Package Contents


Contact support@mfactors to order!

USBMA V1.2 x1
with IPX to RP-SMA cable x2

IPX to RP-SMA cable 8cm

Y05-U04-060 (USB 2.0 A Male to B Mini 5 Pin Cable 60cm) x1







Y05-U02-060 (USB Dupont to 5PIN Cable) x1

Screwdriver x1

Screw x2
