FPC (Easy made-to-order system for your own FPC!)

FPC (Easy made-to-order system for your own FPC!)

Introduction:



Please email sales@mfactors.com for any inquiries



Three steps for your original FPC!


    1. Choose “Host Side” Plug interface.

    2. Choose “Card Side” Connector interface.

    3. Decide the total length. (max 50cm)

* When we develop as standard product, NRE is FREE!
* NRE includes 2 pcs samples and shipment fee.
* Please refer price list and component list for NRE.
* M-Factors Storage will support you to choose connectors!
* Unit Price will be provided separately.

Order Flow:

  1. Please choose specifications (interfaces, total length etc.)
    Contact M-Factors Storage for assistance, if necessary.
    - sales@mfactors.com

    [OEM info] SIM, SD extension product components design info
    Plug Form (L) : Connector (R) : Length Material
    SIM plug
    Micro SIM plug
    Nano SIM plug
    SD plug
    Micro SD plug
    FFC Conn
    (Other)
    SIM conn (Push-Pull)
    SIM conn (Push-Push)
    SD conn (Push-Pull)
    SD conn (Push-Push)
    microSD conn
    FFC Conn
    (Other)
    4~50cm Dupont
    ShengYi


    Vendor Material Flammability RoHS Operating temp. Solder shock Peel Strength Thickness Surface Resistance
    DuPont FPC UL94 V-0 Yes UL 796
    180oC
    288oC / 10sec >1.8 N/mm 0.1mm >E16Ω
    ShengYi UL94 V-0 Yes / 288oC / 10sec >1.2 N/mm 0.1mm >105 MΩ
    Bplus FFC VW-1 Yes AWM 20624
    80oC
    / / 0.1mm /
    * Standard material = ShengYi

  2. Contact our sales: sales@mfactors.com
    Mass Production Schedule and Quantity
    - ex. 100pcs/month
    M-Factors Storage provides FREE consultant service.
    - Discuss blush-up specification together.
    - M-Factors Storage provides rough Product Image.
    - More accurate NRE.


  3. Quotation
    M-Factors Storage will provide:
    Final NRE: including 2pcs samples & shipping fee.
    Unit Price
    Final Product Image (PDF)
    3D Drawing (PDF) : if necessary

  4. Order & Payment
    Payment: Paypal, credit card or Bank Wire

  5. Wait for product: Standard 3-5 weeks
    One weeks for FPC design – Check together
    Two-Four weeks for manufacturing. (PCB & SMT)



SD Card - Interface selection *1:



SD Host Side SD Card Side
A. SD socket
Push-Pull type

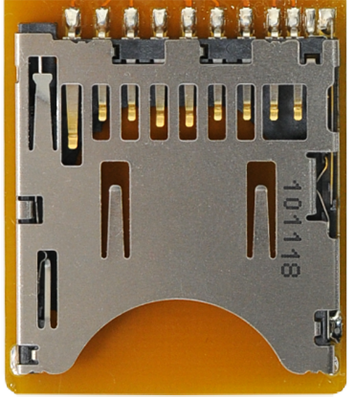

B. SD socket
Push-Push

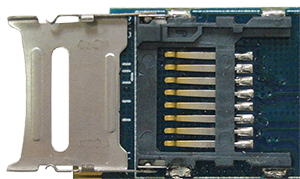

C. microSD socket
Clam Shell
D. FPC 10pin
0.5mm Pitch

1. microSD
(None) ex. B1912A
12cm
ex. B1809A
9cm
ex. B1908B*2
8cm
(DB19)
2. FPC 10pin
0.5mm Pitch
(None) (None) (None) (None)

*1 : Price may vary on total length and width.
NRE includes 2pcs samples and shipping fee.

B1912A: Total length = 12cm, Width=3cm


*2 : FPC only. DB19 is NOT included.


Order Example, microSD: NRE

SD Host Side: 2. FPC 10pin, SD Card Side: C. microSD socket, Length: 9cm
* PCB and the connector not included.
* NRE includes 2 samples and shipping fee.






 SIM / SmartCard - Interface selection*1:



SIM / SmartCard Side
SIM / SmartCard
Host Side
A. SIM Slot Push-Pull

B. SIM Slot Push-Push
C. FPC 6pin 1mm Pitch
1. SIM Outside Notch

B3612A
12cm

B3616B
16cm

B1216A
16cm

B1226B
26cm

B4516A*2
16cm
(DB43)

2. SIM Inside Notch

B1612A
12cm

B1605B
5cm

(None)

B4116A*2
16cm
(DB32)

3. microSIM Outside Notch

Samsung Galaxy

B3014A
14cm

B4215A
15cm

B4010A*2
10cm
(DB43)

4. microSIM Inside Notch

B2040A
40cm

B2014B
14cm

(None)

B4616A*2
16cm
(DB32)

5. nanoSIM Outside Notch

B4714A
14cm

(None)

B4814A*2
14cm
(DB43)

6. nanoSIM Inside Notch

iPhone5 / 5s
New iPad / iPad mini

B3114A
14cm

(None)

B3214A*2
14cm
(DB32)

7. FPC 6pin 1mm Pitch


(None)

(None)

B4490A
(FFC 90cm)

Order Example, microSIM – SIM Push-Push Slot: NRE

SIM Host Side: 4.microSIM Inside notch, SIM Card Side: B.SIM Push-Push slot, Length: 10cm
* NRE includes 2pcs samples and shipping fee.
