EC2380-AB (USB2380-AB Evaluation Board)

Introduction:

The EC2380-AB is evaluation board for USB 2380-AB, an ExpressCard (PCI Express Gen 1) to USB 2.0 Hi-Speed Peripheral Controller. It features one ExpressCard (PCI Express Gen 1 x1) port and one USB 2.0Hi-Speed client port. The EC2380-AB provides a matching bandwidth at 2.5GT/s between the PCI Express Gen 1 bus and the USB 2.0 Hi-Speed bus. The controller can easily add a USB 2.0 client port to an existing system such as laptop PC with ExpressCard slot, as well as convert an existing PCI Express function (endpoint) to a USB 2.0 product. The EC2380-AB can configure the ExpressCard as one x1 upstream port or one x1 downstream port. The flexibility allows different system configurations to achieve the maximum performance of the product.

Specification:

USB 2.0 Client Interface

  • USB 2.0 Specification Compliant
  • 1 upstream port
  • Supports Hi-Speed, Full-Speed modes
  • Four Descriptor-based DMA channels for automatic data transfers
  • Supports USB Duet® Technology
  • USB Auto-Enumeration Technology
  • Support for Bulk, Isochronous, and Interrupt Endpoints
  • USB 2.0 link power management states: L0, L1, L2
  • Micro B Receptacle connector

PCI Express Interface

    1. PCI Express Gen 1 (2.5Gbps)
    2. Electrical Compliance to PCI Express Base Specification r2.0
    3. PCIe interface and integrated root complex provides two configurations:
      one x1 upstream port
    4. PCI Express Power Management:
      All link power management states: L0, L0s, L1, L2/L3 Ready, and L3
      evice states: D0 and D3(hot & cold)
      Vaux, Wake#, Beacon support
    5. 256 byte maximum payload size
    6. ExpressCard 1.0 compliance

Note
Software development is required. To obtain RDK, please contact support@mfactors.com





Applications:

Target applications for the EC2380-AB adapter as a PCI Express endpoint include PCs, servers, docking stations, printers, and PCI Express embedded systems.

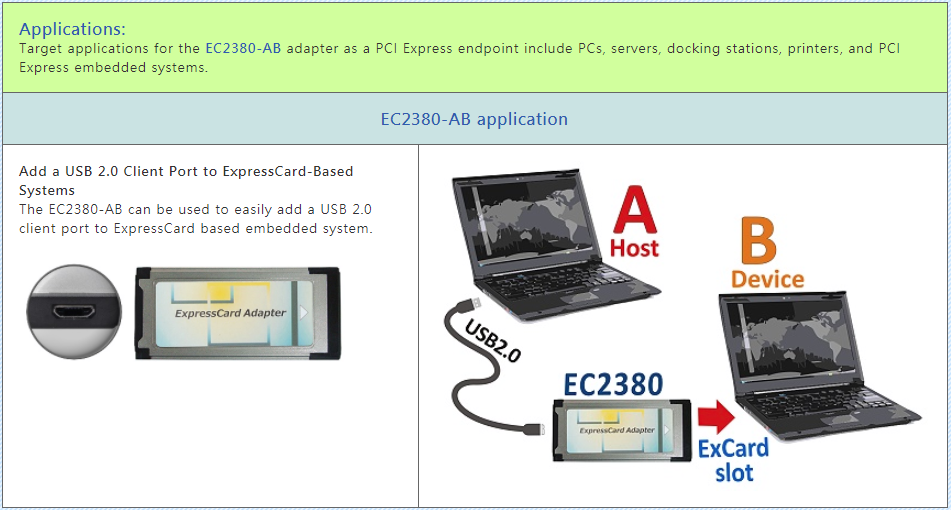

EC2380-AB application

Add a USB 2.0 Client Port to ExpressCard-Based Systems
The EC2380-AB can be used to easily add a USB 2.0 client port to ExpressCard based embedded system.



EC2380-AB

Package Contents

Unit price: US$ 65

EC2380-AB
(USB2380-AB Evaluation Board) x1

USB 2.0 A Male to Micro B Cable x1

SPB087
(ExpressCard 34 to 54 Bracket) x1
