B3014A (Micro SIM to SIM Card Extender)

Write a Review
$24.00
SKU:
B3014A
Shipping:
Calculated at Checkout

Product Overview

B30 Series (Micro SIM to SIM Card Extender)

 Introduction:

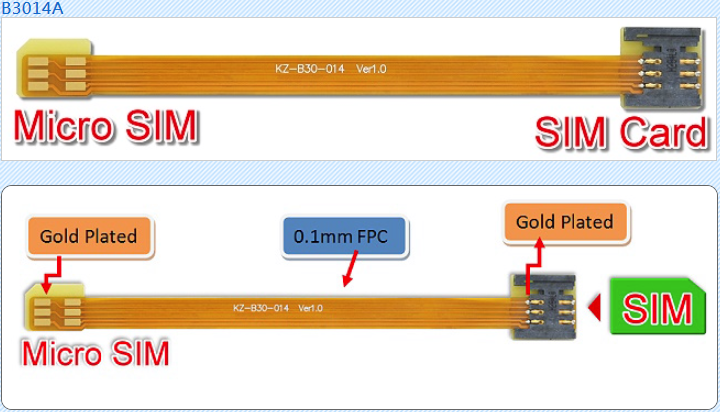

B30 Series Micro SIM card Extender is a debug and test tool especially for SAMSUNG Galaxy, etc. Design the FPC cable for flexible use.
It allows a Micro SIM Card to be extended from the host slot for SIM interface. As thickness of FPC is 0.1mm, KZ-B30 can be routed through narrow slit between body and cover case.
It’s especially designed to save valuable labor and time in the production environment. The SIM extender is designed to minimize the signal degradation effects of the extender by proven design techniques.
It’s also a powerful tool for engineers,or use for mobile phone SIM test protection.

B3014A



B3014A (Old P/N: KZ-B30-L14)

Package Contents

Unit price: US$ 24.00

B3014A (Old P/N: KZ-B30-L14)

(micro SIM to SIM Card Extender)







Documents Download
Brief   Taiwan   Taiwan 2 Mirror   China Mirror
Dimension   Taiwan   Taiwan 2 Mirror   China Mirror
3D Model   Taiwan   Taiwan 2 Mirror   China Mirror
Schematic   Tawan   Taiwan 2 Mirror   China Mirror
Selection Guide   Tawan   Taiwan 2 Mirror   China Mirror
