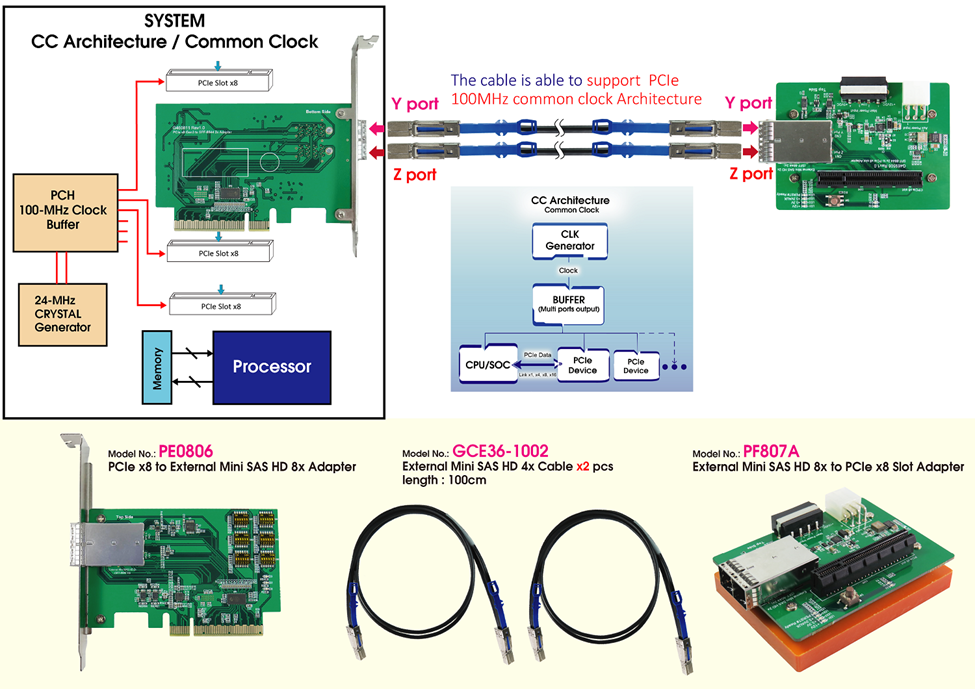

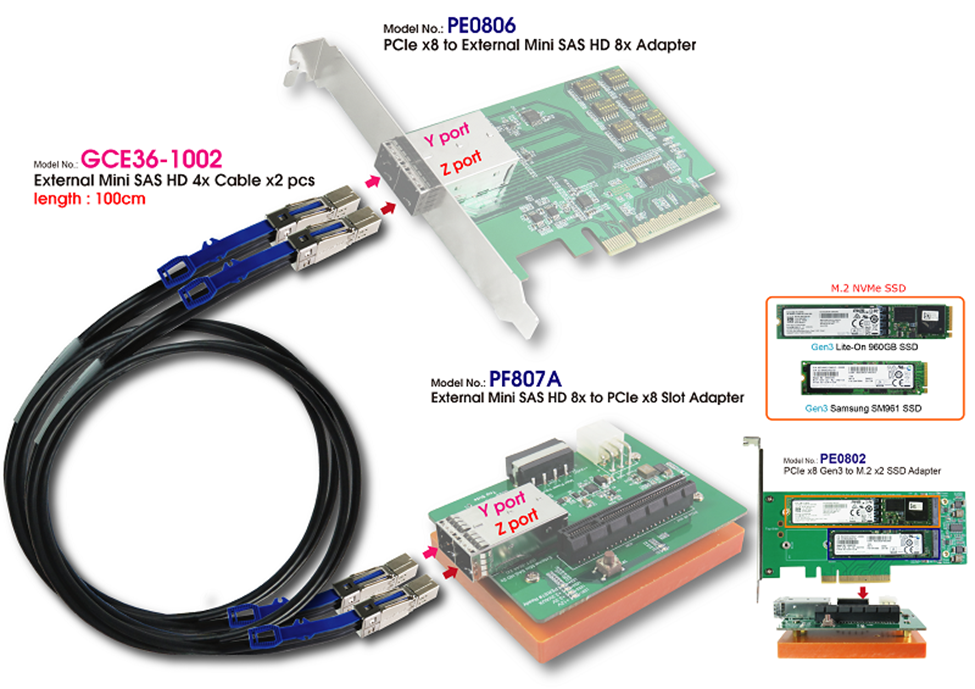

PF807A (EXTERNAL MINI SAS HD 8X TO PCIE X8 SLIOT ADAPTER)
External miniSAS 2x(SFF-8644) to PCIe x8 convert
Built-in SFF-8644 2x connector
Built-in PCIe x8 Slot
Built-in +12V Hot Plug Power with eFuse protection for PCIe +12V
◆ Programmable Current...
PE0806 (PCIE X8 GEN3 TO EXTERNAL MINI SAS HD 8X ADAPTER)
External Mini SAS HD 8x (SFF-8644) to PCIe x8 Gen 3 convert
Built-in SFF-8644 8x connector
Built-in ReDriver to extend PCIe 3.0, 8GT/s differential pair signals 8 lanes data link widths
Built-in...
PCIe Gen 3, 4 Lanes to mini SAS HD & Slimeline SAS adapter
Mini SAD HD(SFF-8643) to PCIe convert
Slimline SAD(SFF-8654) to PCIe convert
Build in SFF-8643 connector, pin-out defined by PCIe
Build in SFF-8654 connector, pin-out defined by PCIe
Mini SAS HD (SFF-8643) & U.2 (SFF-8639) to M.2 M-Key Adapter
M.2 PCIe to U.2(SFF-8639) convert
M.2 PCIe to SFF-8643) convert
Build in M.2 M-key Female connector
Build in SFF-8639 connector, pin-out defined by PCIe
PCIe Gen 3/4 Lane to mini SAS HD & U.2 Adapter with PCIe Bracket
Mini SAD HD(SFF-8643) to PCIe convert
U.2(SFF-8639) to PCIe convert
Build in SFF-8643 connector, pin-out defined by PCIe Gen3/4-lane
Build in SFF-8639 connector, pin-out defined by PCIe...
