Features:

•  SlimSAS 4i (SFF-8654) to PCI Express 4.0 convert
•  Built- in SFF-8654 connector, pin-out defined by SFF-9402 Rev1.1
•  Built- in PCIe ReDriver to extend PCIe Gen4, 16GT/s differential pair signals
•  Built- in PCIe 100MHz Clock buffer to drive longer trace lengths and longer cable
•  Built- in PCIe 3.3V SMCLK, SMDAT bidirectional buffer repeater
•  Built- in PERST# Bus Buffer Gate to be used over longer trace lengths and over longer cable
•  Built- in WAKE# Bus Buffer Gate to be used over longer trace lengths and over longer cable
•  Built- in CLKREQ# Bus Buffer Gate to be used over longer trace lengths and longer over cable
•  Built- in PWRBRK# Bus Buffer Gate to be used over longer trace lengths and longer over cable
•  D3 Green LED on indicates AIC ready

Specifications:

• PCI Express Base Specification Rev 4.0
• PCIe_CEM_SPEC_R4_V1_0_08072019_NCB
• Support SSD_Form_Factor_Version1_a
• Compliant with SFF-8654 Specification Version 1.2

Operating system support:

• Windows 7
• Windows 8 &8.1
• Windows 10
• UEFI 2.3.1 or later

Application:

• Rack server
• Microserver and Tower server
• High performance computing
• Hardware accelerator
• Storage Controller HBA(Host Bus Adapter)
• Desktop PC/motherboard

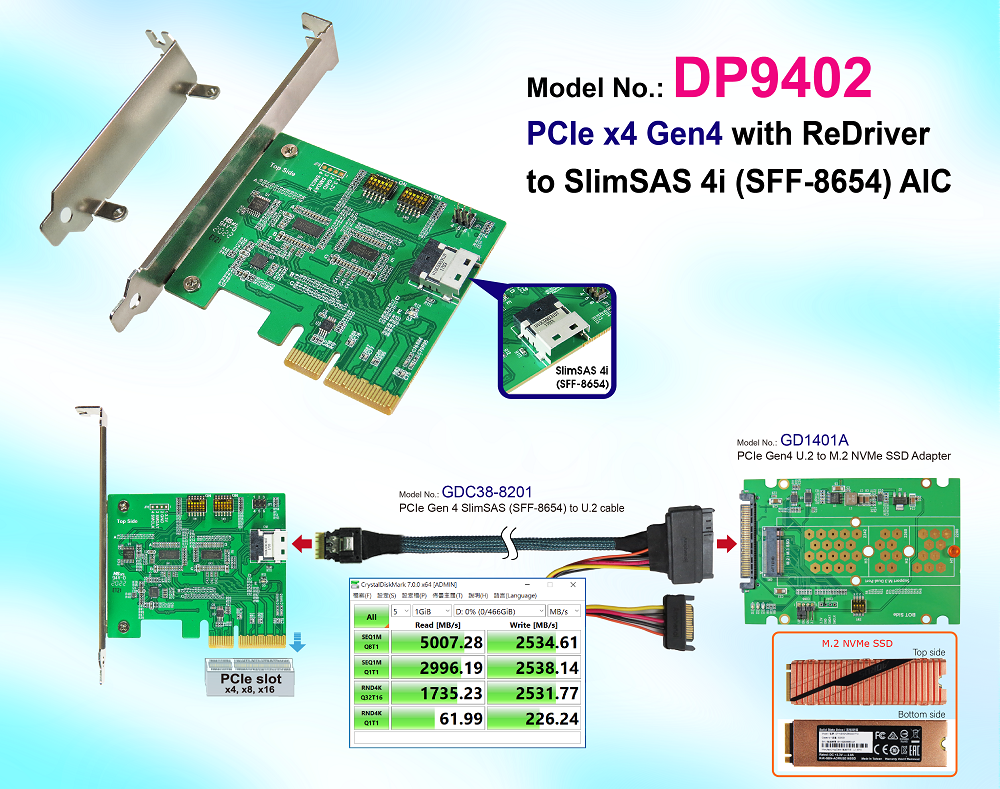

Usage:

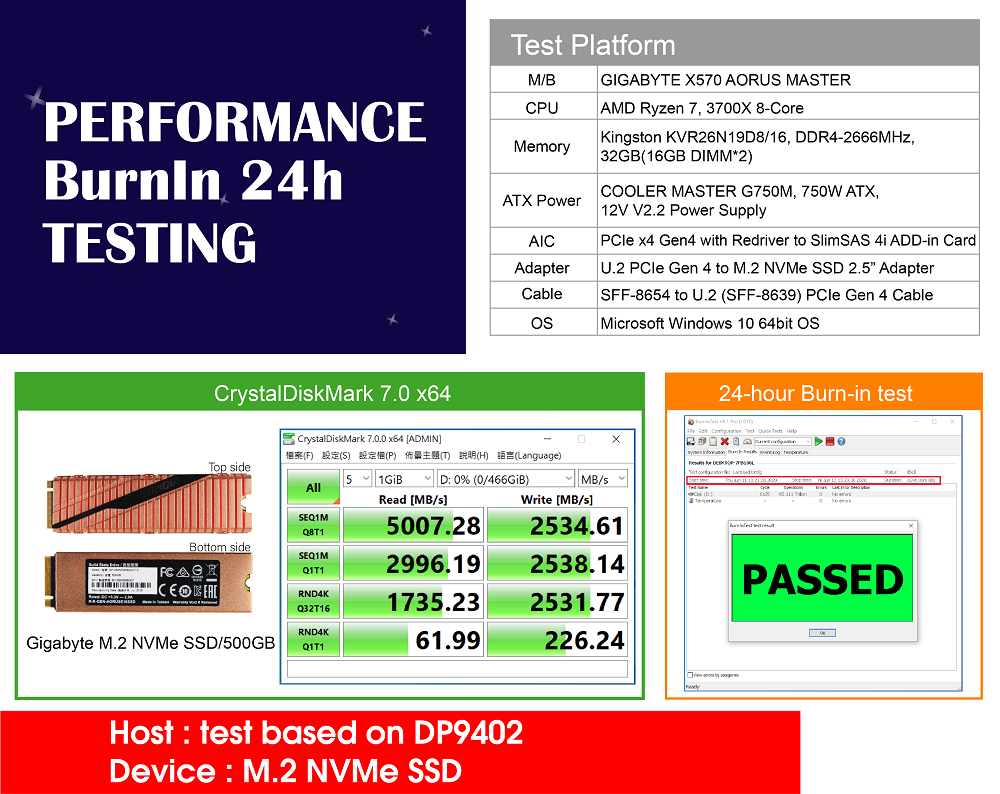

Test Report:
