USBMS-E V1.4 (Wireless USB Mini Card Adapter)

Introduction:

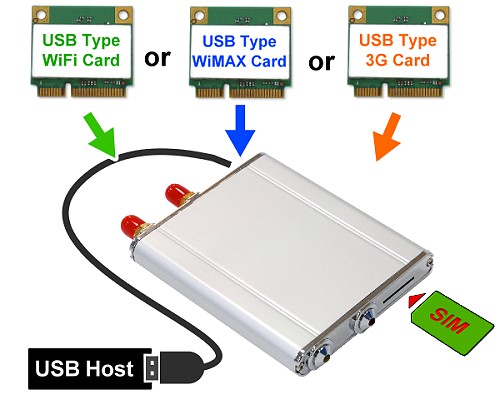

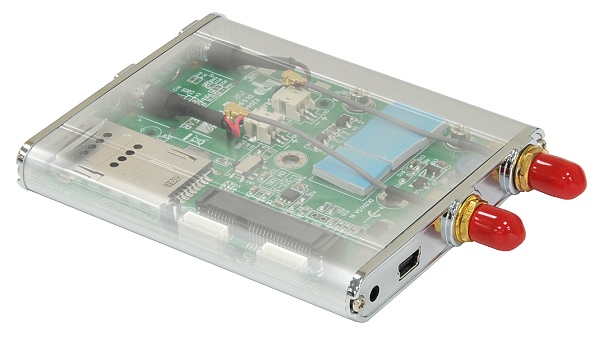

The USBMS-E adapter is designed for desktop/Laptop PCs that convert 3G wireless Mini-Card to USB port.
You can insert your USB type minicard such as GSM, HSPA(3.5G), GPS, LTE cards to this adapter then plug to USB port through USB cable.
Standard SIM card Push Push connector is provided.

Features

  • USB mini type-B connection to desktop or notebook PC.
  • Supports system bus interface: USB.
  • Supports USB interface of Mini-Cards such as 3G,CDMA, WLAN,WWLAN, HSPA MODEM , GPS, WiMAX Mini Card to desktop PC.
  • Support Voice function. Add MIC and EAR connector.
  • Support SIM card Push Push connector.
  • Add ACCESS LED, POWER LED
  • Support U.FL/IPX to SMA pigtail Wifi RF cable adapter.

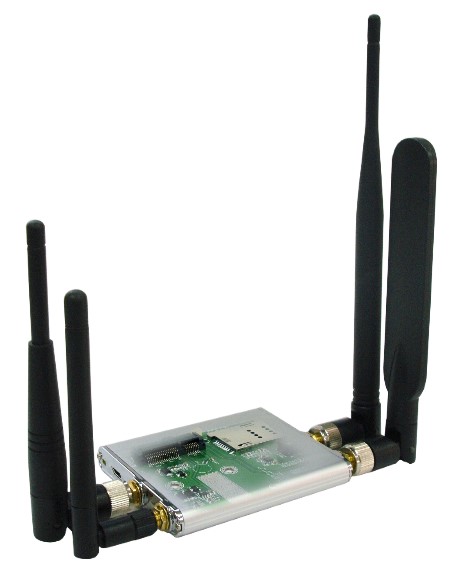

  • (Option) 800/1800 MHz Duck Antenna..
  • (Option) 900/2100 MHz Duck Antenna.
  • (Option) 2.4GHz MHz 2.15dBi Rubber Duck Antenna.
  • (Option) 2.4/5.8GHz Rubber Duck Antenna.
  • (Option) 5.8GHz 5dBi Rubber Duck Antenna.
  • (Option) 2.3GHz 2.15dBi Rubber Duck Antenna
  • (Option) 2.5GHz 2 dBi Rubber Duck Antenna
  • (Option) 3.5GHz 2.5dBi Rubber Duck Antenna

Specification

  • PCI Express Mini Card to USB adapter.
  • PCI Express Mini Card Electromechanical Specification Revision 1.2
  • Universal Serial Bus Specification Revision 2.0
  • Full/ Half -Mini Card dimension.
  • SIM Connector for CDMA HSDPA/HSUPA, UMTS, GSM, GPRS, EDGE

System Requirements

  • USB port
  • Windows 2000, XP, Vista 32/64, Windows 7
  • Linux

Notice
USBMS-E is USB passive adapter. Just only support wireless USB minicard. Can’t support PCIe minicard.
Please check compatibility list for detail.

USBMS-E V1.4

OPTION : USBMS-E Enclosure with IPX cable 4PCS

Standard SIM card Push Push connector is provided.




USBMS,USBMS-D, USBMS-E, USBMS-N15 Comparison                           2011/Nov/15
Functions Comparison
Indicate LED
MIC/EAR CON
External Power
1.5V
Wake Function
USBMS
Yes
Yes
No
Yes
No
USBMS-D
No
Yes
Yes
Yes
No
USBMS-E
Yes
No
Yes
Yes
Yes
USBMS-N15
No
Yes
Yes
No
No
Caution:
1. USBMS-E design for Ericsson module.
2. Please use USBMS-N15 for LONGCHEER U6300V module using



USBMA, USBMV, USBMI, USBMS enclosure for wireless minicard comparison                           2011/Dec/22
USBMx  functions comparison
USBMA v1.1
USBMA v1.2f
USBMI
USBMI-D
USBMV
USBMV-D
USBMS
USBMS-D
USBMS-E
USBMS-N15
USB2.0 interface
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
PCIe interface
No
No
No
No
No
No
No
No
No
No
AC/DC 3.3V external power input
No
No
No
Yes
No
Yes
No
Yes
Yes
Yes
External access LED
Yes
Yes
Yes
No
Yes
No
Yes
No
Yes x2
No
3.3V output current (typ.)
1500mA
1500mA
2700mA
2700mA
2700mA
2700mA
2700mA
2700mA
2700mA
2700mA
1.5V output current (typ.)
800mA
800mA
1000mA
1000mA
1000mA
1000mA
1000mA
1000mA
1000mA
No
By pass cap. for 3G card peak current
0.047F
0.047F
0.047F
0.047F
0.15F
0.15F
0.22F
0.22F
0.22F
0.22F
SIM card connector
Yes
Yes
Yes
Yes
Yes
Yes
Yes (Push)
Yes (Push)
Yes (Push)
Yes (Push)
MIC/EAR connector
No
No
No
No
Yes
Yes
Yes
Yes
No
Yes
MiniCard dimension support
Full/Half
Full/Half
Full/Half
Full/Half
Full/Half
Full/Half
Full/Half
Full/Half
Full/Half
Full/Half
Caution:
1. USBMS-E design for Ericsson module support wake function.
2. USBMS-N15 design for SierraWireless, LONGCHEER module using



USBMS-E V1.4 RPSMA

Package Contents


Unit price: US$  PLEASE CONTACT M-FACTORS SALES TEAM FOR PRICING.

USBMS-E V1.4 x1 (IPX to RP-SMA cable x2)

IPX to RP-SMA cable

USB-Y-Line-2.0 (USB 2.0 Y-Line cable) x1

P25AMTDC60 (USB A Male to DC Power Cable) x1

Screwdriver x1

Screw x2



USBMS-E V1.4 SMA

Package Contents


Unit price: US$ 94.00

USBMS-E V1.4 x1 (IPX to SMA cable x2)

IPX to SMA cable 8cm

USB-Y-Line-2.0 (USB 2.0 Y-Line cable) x1

P25AMTDC60 (USB A Male to DC Power Cable) x1

Screwdriver x1

Screw x2





Brief Taiwan 1 Taiwan 2 China
Dimension V1.2 Taiwan 1 Taiwan 2 China
Dimension V1.4 Taiwan 1 Taiwan 2 China
USBMS-E
Schematic
V1.2
Taiwan 1 Taiwan 2 China
