USB3380-EVB (USB3380 Evaluation Board)

Hover over image to zoom

  • Image 1
$195.00
SKU:
USB3380-EVB
Availability:
Please email support@mfactors.com for assistance
Shipping:
Calculated at checkout

 Product Description

USB3380EVB (USB3380 Evaluation Board)

The USB3380-EVB is a PCI Express Gen 2 to USB 3.0 SuperSpeed Peripheral Controller. It features one PCI Express Gen 2 x1 port and one USB 3.0 SuperSpeed client port. The USB 3380 provides a matching bandwidth at 5 GT/s between the PCI Express Gen 2 bus and the USB 3.0 SuperSpeed bus. The controller can easily add a USB 3.0 client port to an existing PCI Express system, as well as convert an existing PCI Express function (endpoint) to a USB 3.0 product. The USB 3380 can configure the PCI Express port as one x1 upstream port or one x1 downstream port. The flexibility allows different system configurations to achieve the maximum performance of the product.

Specifications

USB 3.0 Client Interface

  • USB 3.0 Specification.
  • 1 upstream port.
  • Supports SuperSpeed, Hi-Speed, Full-Speed modes.
  • Four Descriptor-based DMA channels for automatic data transfers.
  • Supports USB Duet® Technology.
  • USB Auto-Enumeration Technology
  • Support for Bulk, Isochronous, and Interrupt Endpoints.
  • USB Power Management USB 3.0 link power management states: U0, U1, U2, U3
  • USB 2.0 link power management states: L0, L1, L2

PCI Express Interface

  • PCI Express Gen 2 (5Gbps)
  • Electrical Compliance to PCI Express Base Specification r2.0
  • PCIe interface and integrated root complex provides two configurations:
    one x1 upstream port
    one x1 downstream port
  • PCI Express Power Management All link power management states: L0, L0s, L1, L2/L3 Ready, and L3
    Device states: D0 and D3(hot & cold)
    Vaux, Wake#, Beacon support
  • 256 byte maximum payload size
  • ExpressCard 2.0 compliance


Tools & Resource Downloads



Applications:

Target applications for the USB3380EVB adapter as a PCI Express endpoint include PCs, servers, docking stations, printers, and PCI Express embedded systems.
Add a USB 3.0 Client Port to PCI Express-Based Systems
The USB 3380 can be used to easily add a USB 3.0 client port to any PCI Express based embedded system.
As a PCI Express endpoint, the USB 3380’s Standard PCI Express interface connects directly to any PCI Express bus.

Add a USB 3.0 Client Port to ExpressCard-Based Systems
The USB 3380 can be used to easily add a USB 3.0 client port to any ExpressCard based embedded system.

Add a USB 3.0 Client Port to PCI Express-Based Systems
The USB 3380 can be used to easily add a USB 3.0 client port to any PCI Express based embedded system.
As a PCI Express endpoint, the USB 3380’s Standard PCI Express interface connects directly to any PCI Express bus.





 USB3380EVB

Package Contents


 Unit price: US $195

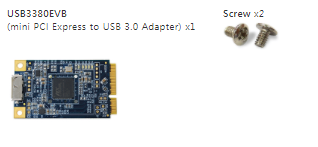

 USB3380EVB

(mini PCI Express to usb 3.0 Adapter) x1

Screw x2



USB3380-AB EVK

Package Contents


Unit price: US $257

USB3380-AB EVK

  • USB3380EVB (mini PCI Express to usb 3.0 Adapter) x1
  • (mini PCIe to PCIe Adapter) x1ADP
  • Screw x2

Y09-U11-100
(USB 3.0 Type A to USB Micro B Cable 100cm) x1

Standard Height PCI express bracket x1



USB3380EVB-PE3B

Package Contents


Unit price: US $357

USB3380EVB-PE3B

  • USB3380EVB (mini PCI Express to usb 3.0 Adapter) x1
  • (Mini Card to ExpressCard Adapter) x1PE3B
  • Screw x2

Y09-U11-100
(USB 3.0 Type A to USB Micro B Cable 100cm) x1

P25AMTDC60

(USB A Male to DC Power Cable) x1

SPB087

(ExpressCard 34 to 54 Bracket) x1




USB3380-AB EVK-RC

Package Contents


Unit price: US $452

USB3380-AB EVK-RC

  • (mini PCI Express to usb 3.0 Adapter) x1USB3380EVB-R
  • USB3380RCB x1
  • Screw x2

Y09-U11-100
(USB 3.0 Type A to USB Micro B Cable 100cm) x1

GX34W-5-12

(AC/DC 100V~240V to DC 12V/2A 5V/2A power adapter) x1

External 5V/12V power supply cable x1
