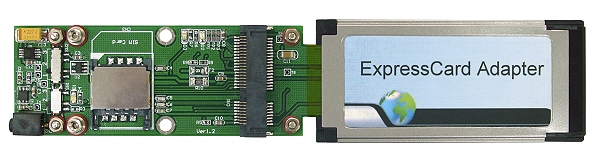

PE3B - Mini PCIe Card to ExpressCard adapter

This PE3B passive adapter allows you to use your existing PCI express mini-Card in the ExpressCard Standard slot

Add SIM socket for 3G minicard and add DC jack for external power source.

• Express Card Standard Release 1.0 (PCMCIA)
• PCI Express base Specification 1.0
• PCI Express Mini Card Electromechanical Specification Revision 1.2
• Universal Serial Bus Specification Revision 2.0
• Ready for Full / Half -Mini Card dimension.
• SIM Connector for CDMA HSDPA/HSUPA, UMTS, GSM, GPRS, EDGE minicard.
• Access LED; Power LED; PERST# LED.
• USB2.0 and PCI-E minicard support.
• PTC fuses and power switch for power protection.

System Requirements:

ExpressCard Standard Release 1.0 slot

PE3B Package Contents:

PE3B ( Mini Card to ExpressCard Adapter ) x1

P25AMTDC60 (USB A Male to DC Power Cable) x1
