MP2W-1000H (PCI-E Desktop adapter with Intel Centrino Wireless-N 1000)

MP2W-1000H (PCI-E Desktop adapter with Intel Centrino Wireless-N 1000)

Introduction:

The MP2W-1000 is PCIe 1x add-in card adapter with Intel® Centrino® Wireless-N 1000. Family of IEEE 802.11b/g/n Wi-Fi wireless network adapters for your PCI Express-enabled desktop computer. Operate in both the 2.4 GHz spectra. These adapters, available in PCIe* Mini Card form factor deliver up to 300 Mbps of bandwidth.

Specification

• PCI Express Mini Card to PCI Express adapter.
• Standard Height PCI Express1x Add-in Card
• Low Profile PCI Express Add-in Card.
• Wireless access LED, POWER LED
• 2.4G 2.15dBi rubber duck antenna
• U.FL/IPX to RP-SMA pigtail WiFi RF cable adapter
• IEEE WLAN Standard 802.11b/g/n
• IEEE WLAN Standard 802.11d, 802.11e, 802.11h, 802.11h
• Up to 300 Mbps of bandwidth
• CE/FCC certifications
• Intel® Centrino® Wireless-N 1000 brief download
• DRIVER download (http://downloadcenter.intel.com)
• Operating Systems: Microsoft Windows XP 32/64-bit, Microsoft Windows Vista 32/64-bit, Microsoft Windows 7 32/64-bit, Linux

Notice

• No driver CD accompanied.
• Make sure you download and install the proper driver before you install the adapter.
• On-board diversity support for systems designed with two antennas

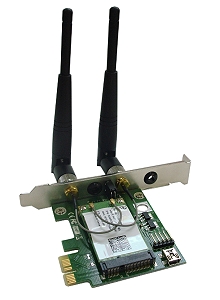

MP2W-1000H with PCI-e Desktop adapter with Intel® Centrino® Wireless-N 1000	MP2W-1000M with PCI-e Desktop adapter with Intel® Centrino® Wireless-N 1000
112BNHMW Intel® Centrino® Wireless-N 1000(half size)	112BNMMW Intel® Centrino® Wireless-N 1000(Full size)
IPX to RP-SMA cable

MP2W-1000H Package Contents
Unit price: US$ 45
MP2W (Mini PCI-E to PCI-E adapter ver 2.13a) x1 with IPX to RP-SMA cable x2	112BNHMW Intel® Centrino® Wireless-N 1000 x1
ANT2400Q2P (2.4GHz 2.15dBi Rubber duck antenna) x2	JP0735 (Low profile PCI express bracket) x1
	Y02-WH-015 (Dupont 5PIN to dupont 5PIN USB cable) x 1	Screw x2

MP2W-1000M Package Contents
Unit price: US$ 45
MP2W (Mini PCI-E to PCI-E adapter ver 2.13a) x1 with IPX to RP-SMA cable x2	112BNMMW Intel® Centrino® Wireless-N 1000 x1
ANT2400Q2P (2.4GHz 2.15dBi Rubber duck antenna) x2	JP0735 (Low profile PCI express bracket) x1
	Y02-WH-015 (Dupont 5PIN to dupont 5PIN USB cable) x1	Screw x2

Documents Download
MP2W-1000 Brief (PDF):	Taiwan 1	Taiwan 2 Mirror	China Mirror
Dimension ver2.13a	Taiwan 1	Taiwan 2 Mirror	China Mirror
Dimension (PDF):	Taiwan 1	Taiwan 2 Mirror	China Mirror
Schematic (PDF):	Taiwan 1	Taiwan 2 Mirror	China Mirror
Intel® Centrino® Wireless-N 1000 brief	Taiwan 1	Taiwan 2 Mirror	China Mirror
Intel® Centrino® Wireless-N 1000 driver	Taiwan 1	Taiwan 2 Mirror	China Mirror
IPX cable brief (PDF):	Taiwan 1	Taiwan 2 Mirror	China Mirror
ANT2400Q2P (2.4GHz Antenna) brief	Taiwan 1	Taiwan 2 Mirror	China Mirror
MP2W User manual(PDF):	Taiwan 1	Taiwan 2 Mirror	China Mirror
Compatibility List(PDF):	Taiwan 1	Taiwan 2 Mirror	China Mirror
MPx Comparison MPx 系列比較表 MPx 比較表	Taiwan	Taiwan 2	China Mirror
