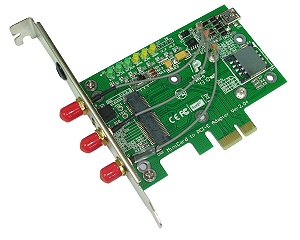

MP2A   (Mini PCI-E to PCI-E adapter)

Introduction:

The MP2A passive adapter is designed for desktop PCs that convert Mini-Card to USB port or standard PCI-Express 1x slot.
You can insert your USB type minicard to this adapter then plug to USB port through USB cable.
Or insert your PCI-E type mini-card into this adapter then insert to PCI-E 1x connector .

MP2A	Option IPX Cable 4pcs
MP2A with ANT2400Q2P3 (2.4GHz 2.15dBi Rubber duck antenna)	MP2A with ANT2458Q5P (2.4/5.8GHz Rubber Duck Antenna)
MP2A with ANT5800Q5P (5.8GHz 5dBi Rubber Duck Antenna)	MP2A with antenna 4 pcs

Features

• PCI Express Mini Card to PCI express 1x converter.
• Allows user to test PCI Express Mini modules on the PCI Express slot.
• Supports two primary system bus interface: PCI Express and USB.
• Supports all of Mini-Cards such as 3G,CDMA, WLAN,WWLAN, Mini Card to desktop PC.
• Supports U.FL/IPX to RP- SMA pigtail WiFi RF cable adapter. (Optional)

Notice
There are existing mPCIe 'form factor' SSD's that present SATA and PATA interface, but none that use the standard mPCIe pinout (i.e. mPCIe tx/rx pins). ...
MP2A support standard mPCIe minicard. Can’t support custom SATA/PATA SSD minicard.
Please check compatibility list for detail.

Specification

• PCI Express Mini Card to PCI Express/USB adapter.
• PCI Express Mini Card Electromechanical Specification Revision 1.2
• PCI Express Card Electromechanical Specification 1.1
• Universal Serial Bus Specification Revision 2.0
• Standard Height PCI Express Add-in Card.
• Low Profile PCI Express Add-in Card.
• Full/ Half -Mini Card dimension.
• SIM Connector for CDMA HSDPA/HSUPA, UMTS, GSM, GPRS, EDGE
• Wireless Disable/Enable switch
• WPAN, WLAN, WWAN, VCC3, VCC5, VCCaux LEDs

MP2A Package Contents
Unit price: US$ 43
MP2A (Mini PCI-E / PCI-E Adapter) x1 with IPX to RPSMA cable x3	IPX to RP-SMA cable
U2AMTB60 (USB 2.0 A Male to B Mini 5 Pin Cable) x1	Y02-WH-015 (USB dupont 5PIN to dupont 5PIN cable) x1
JP0735 (Low profile PCI express bracket) x1	Screw x2	Gasket x4
