This Wintec OEM white label High Temp Industrial Grade Secure Digital Cards are constructed with Samsung NAND-type single-level-cell (SLC) flash memory devices paired to a powerful Hyperstone 32-bit RISC/DSP-based system controller for virtual-to-physical address mapping and other flash management functions.

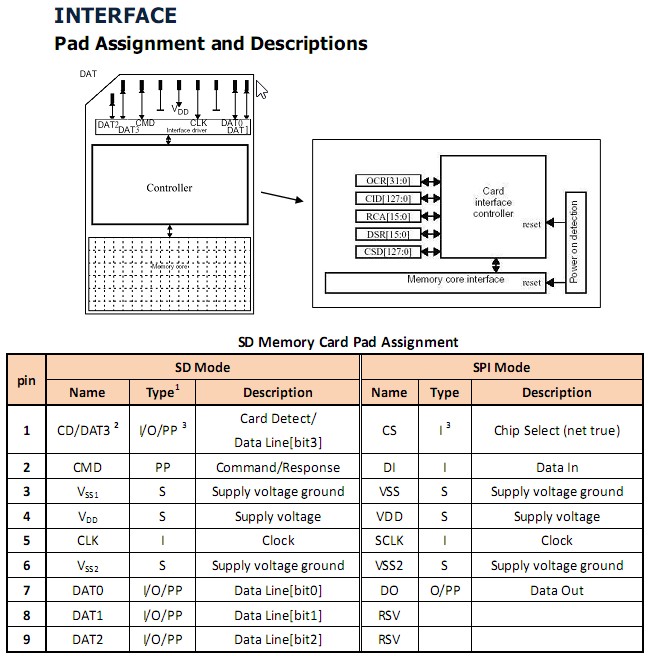

The high performance Secure Digital Card is based on 9-pin interface, designed to operate at a maximum operating frequency of 50Mhz. It performs data error detection and correction and operate with very low power consumption.

Secure Digital 2.0 Card is one of the most popular cards based on its high performance, high reliability and wide compatibility.

Part Numbers
Capacity
M5SD001-SE2H     1GB  SD
M5SD002-SE2H     2GB  SD
M5SD004-SE2H     4GB  SDHC
M5SD008-SE2H     8GB  SDHC

Features:

• Hige temperature grade components for both controller and NAND flash
• SLC Samsung NAND flash
• Support Industry Standard system specification version 2.0.
• 32-bit RISC/DSP controller
• Dual Channel Operation
• Low Power Consumption
• Dual 3.3V/1.8V Interface
• ROHS Compliant
• High-Performance 24MB/s (Sustained Read)
• High-Performance 23MB/s (Sustained Write)
• Write Protect feature using mechanical switch
• Spares and Bad Block Management
• On-Chip ECC and CRC16 unit for flash data protection
• Data Retention: 10 years
• Endurance: 2,000,000 erase/program cycles
• Built-in wear leveling
• Dimension: 32mm(L)x24mm(W)x2.1mm(H)
• Opearating Temperature: -40C to 85C
• Shock 1000G Max
• Vibration 15G (Peak to Peak)
