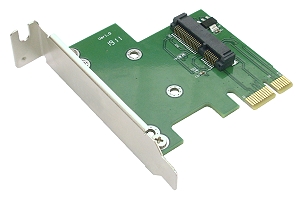

ADP (Mini PCI-E / PCI-E adapter ver1.0)

The PCI-E Mini Card passive adapter is designed for desktop PCs that convert Mini-Card to standard PCI-Express 1x slot.
You can insert your PCI-E type mini-card into this adapter then insert to PCI-E 1x connector

	ADP with Intel® Turbo memory

Specification:

• PCI Express Mini Card Electromechanical Specification Revision 1.2
• PCI Express Card Electromechanical Specification 2.0
• Standard Height PCI Express Add-in Card.
• Low Profile PCI Express Add-in Card.
• Full/ Half -Mini Card dimension.
• Supports all of Mini-Cards such as SSD( PCIe interface), Video Decoder, Turbo memory... Mini Card to desktop PC.

Notice:
*ADP support standard mPCIe minicard. Can't support custom SATA/PATA SSD minicard.
*ADP is designed for engineering test tool not for end user using.

System Requirements:

• desktop PC with an available PCIe slot.
• Windows 7 (32-/64-bit) Vista (32-/64-bit)
• At least one Serial ATA hard drive
• One of the following:
  *Intel® ICH10R Serial ATA RAID/AHCI Controller and 4 GB or 2 GB of Intel® NAND Flash Memory.
  *intel® CH9R Serial ATA RAID/AHCI Controller and 1 GB or 512 MB of Intel® NAND Flash Memory.

Intel® Turbo memory:

  Driver download
  Support

Unit price: US$ 25 ADP Package Contents
ADP (Mini PCI-E / PCI-E adapter ver1.0) x1	Screw x2
JP0155 ( Standard Height PCI express bracket ) x1
