PP3380-AB (USB3380-AB Evaluation Board)

Introduction:

The PP3380-AB is evaluation board for USB 3380-AB, a PCI Express Gen 2 to USB 3.0 SuperSpeed Peripheral Controller. It features one PCI Express Gen 2 x1 port and one USB 3.0 SuperSpeed client port. The PP3380-AB provides a matching bandwidth at 5 GT/s between the PCI Express Gen 2 bus and the USB 3.0 SuperSpeed bus. The controller can easily add a USB 3.0 client port to an existing PCI Express system, as well as convert an existing PCI Express function (endpoint) to a USB 3.0 product. The USB 3380 can configure the PCI Express port as one x1 upstream port or one x1 downstream port. The flexibility allows different system configurations to achieve the maximum performance of the product.

Specification

USB 3.0 Client Interface

  • USB 3.0 Specification
  • 1 upstream port
  • Supports SuperSpeed, Hi-Speed, Full-Speed modes
  • Four Descriptor-based DMA channels for automatic data transfers
  • Supports USB Duet® Technology
  • USB Auto-Enumeration Technology
  • Support for Bulk, Isochronous, and Interrupt Endpoints
  • USB Power Management USB 3.0 link power management states: U0, U1, U2, U3
  • USB 2.0 link power management states: L0,

PCI Express Interface

    1. PCI Express Gen 2 (5Gbps)
    2. Electrical Compliance to PCI Express Base Specification r2.0
    3. PCIe interface and integrated root complex provides two configurations
      one x1 upstream port
      one x1 downstream port
    4. PCI Express Power Management  All link power management states: L0, L0s, L1, L2/L3 Ready, and L3
      Device states: D0 and D3(hot & cold)
      Vaux, Wake#, Beacon support
    5. 256 byte maximum payload size
    6. ExpressCard 2.0 compliance

Note
Software development is required

Applications:

Target applications for the PP3380-AB adapter as a PCI Express endpoint include PCs, servers, docking stations, printers, and PCI Express embedded systems.

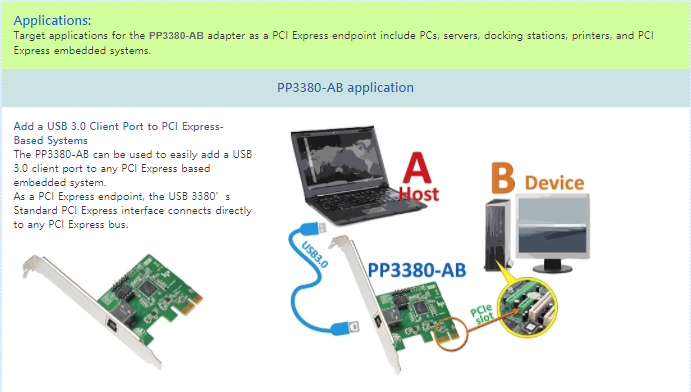

PP3380-AB application

Add a USB 3.0 Client Port to PCI Express-Based Systems
The PP3380-AB can be used to easily add a USB 3.0 client port to any PCI Express based embedded system.
As a PCI Express endpoint, the USB 3380’s Standard PCI Express interface connects directly to any PCI Express bus.

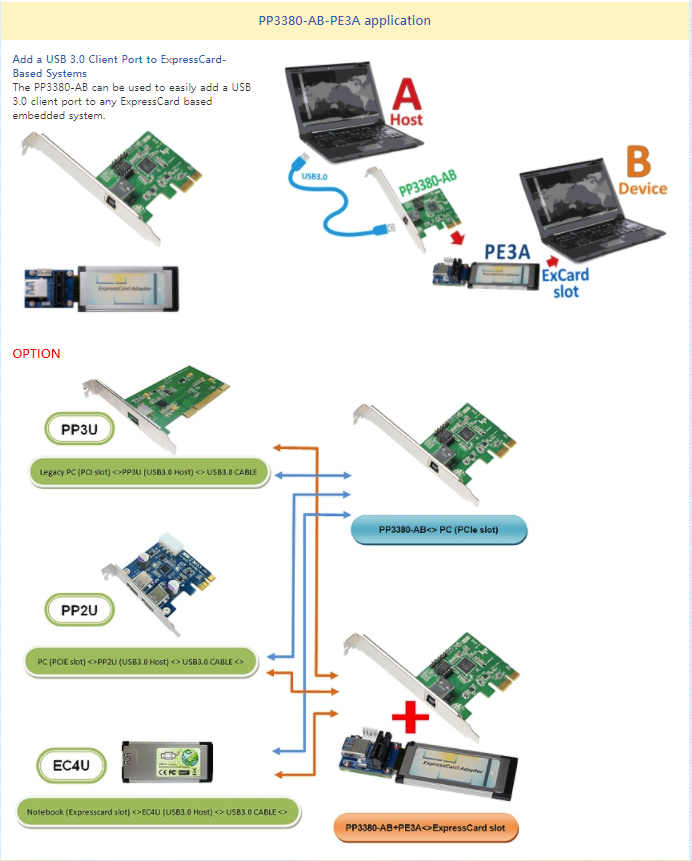

PP3380-AB-PE3A application

Add a USB 3.0 Client Port to ExpressCard-Based Systems
The PP3380-AB can be used to easily add a USB 3.0 client port to any ExpressCard based embedded system.

OPTION







PP3380-AB

Package Contents

Unit price: US$ 208

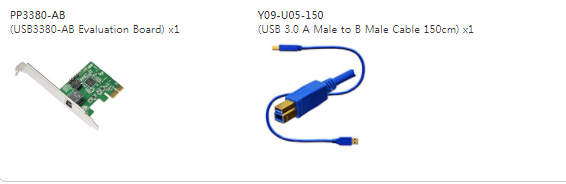

PP3380-AB

(USB3380-AB Evaluation Board) x1

USB 3.0 A Male to B Male Cable x1





PP3380-AB-PE3A

Package Contents

Unit price: US$ 333

PP3380-AB

(USB3380-AB Evaluation Board) x1

PE3A

( PCI-Express or USB 3.0 to ExpressCard Adapter ) x1

USB 3.0 A Male to B Male Cable x1

SPB087

(ExpressCard 34 to 54 Bracket) x1

External 5V/12V power supply cable x1
