PE4L-HP060A v2.1b (PCIe Adapter)

Hover over image to zoom

  • Image 1
$70.00
SKU:
PE4L-HP060A v2.1b
Availability:
Usually Ship in 2-5 business days
Shipping:
Calculated at checkout

Sorry but this item is currently unavailable. Please check back at a later stage.

 Product Description

PE4L V2.1b (PCIe Adapter)

Introduction:

The PE4L is designed for Notebook PCs that converts PCI Express 1X add-on Card to ExpressCard or mPCIe connecter or PCI Express slot.
As PCI Express x1 connector is edge-free / multi-lane, x4, x8 and x16 PCIe Cards are also available.
This adapter allows you to use your existing PCI-E 1X Card in the notebook PC or Desktop PC for test.

PE4L-HP060A

OPTION: DIY BOX v1.0 only support PE4H V2.4a / PE4L V2.1
*Installation Guide
internal dimension: 32 x 20 x 23 cm(DxWxH)
External dimension: 34 x 22 x 31 cm

Specification

  • PE4L-ECxxxA allows user to test PCI Express Add-in-Card on the ExpressCard slot
  • PE4L-PMxxxA allows user to test PCI Express Add-in-Card on the PCI Express mini card (mPCIe) slot.
  • PE4L-HPxxxA allows user to test PCI Express Add-in-Card to be extend from PCIex1 (or x4, x8, x16) slot.
  • Compliant with PCI Express 2.0 Specification: Maximum 5Gbps
  • Compliant with USB2.0 Specification: Maximum 480Mbps
  • Edge-Free / Multi-lane PCIe x1 Connector:x4, x8, x16 PCI Express Add-in-Cards are available.
  • Cable Length:
    PE4L-EC060A / PE4L-PM060A / PE4L-HP060A Lenght 60cm
    Other OEM demands as listed below, please contact us at support@mfactors.com
    PE4L-EC030A / PE4L-PM030A / PE4L-HP030A Lenght 30cm (OEM)
    PE4L-EC100A / PE4L-PM100A / PE4L-HP100A Lenght 100cm (OEM)
    PE4L-EC150A / PE4L-PM150A / PE4L-HP150A Lenght 150cm (OEM)
    PE4L-EC200A / PE4L-PM200A / PE4L-HP200A Lenght 200cm (OEM)

    PE4L-EC300A / PE4L-PM300A / PE4L-HP300A Lenght 300cm (OEM)
    PE4L-EC400A / PE4L-PM400A / PE4L-HP400A Lenght 400cm (OEM)
    PE4L-EC500A / PE4L-PM500A / PE4L-HP500A Lenght 500cm (OEM)

System Requirements

  • Notebook PC or Desktop PC with an available ExpressCard slot or PCI Express mini card slot or PCI Express slot.
  • Windows 7 (32-/64-bit) / Vista (32-/64-bit) SP2 or later/
    XP (32-/64-bit) SP3 or later

Notice:

  1. PE4L is PCIe 1-Lane 5.0Gbps bandwidth limit passive adapter in compliance with Expresscard 2.0 specification
  2. PE4L design for engineering test. NOT for home or office use.
  3. Basically, PCIe add-on card designed for desktop. We can’t guarantee it compatibility with your laptop. Depends on OS version, notebook’s BIOS, device driver,
  4. External Power (ATX Power or AC-DC12V adapter) required.
  5. All of interoperability is not guaranteed.
  6. For more graphics cards experiences. Please visit web-site here.

How to tell v2.1a or v2.1b (or later)

- Shipped after March 23rd 2012 : v2.1b or later

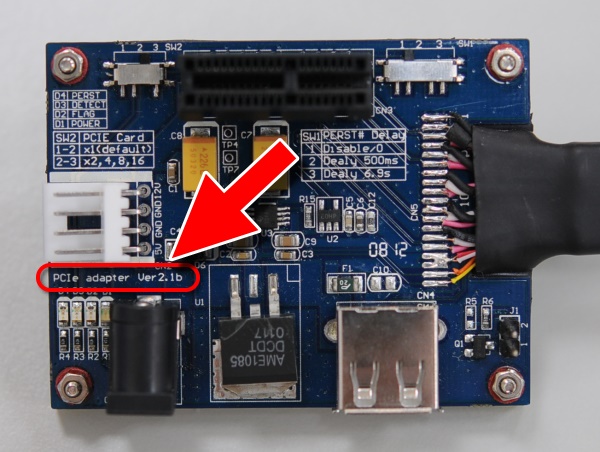

- Silk Description on PE4L PCB;



PE4L-HP060A

Package Contents

Unit price: US$ 70

PE4L-HP060A

(PCIe Adapter) x1

SWEX

(ATX Power Supply Power-On Switch) x1

External 5V/12V power supply cable x1

Screw x2

Dupont 2PIN Cable x1



Documents Download
PE4L v2.1 Brief  Taiwan 1   Taiwan 2 Mirror   China Mirror
Dimension  Taiwan 1   Taiwan 2 Mirror   China Mirror
Schematic  Taiwan 1   Taiwan 2 Mirror   China Mirror
