PE4C V4.1 (PCI Express 16X Card to M.2 Card or PCIe x4 connecter)

Hover over image to zoom

  • Image 1
  • Image 2
  • Image 3
  • Image 4
  • Image 5
$175.00
SKU:
PE4C-M2060A
Availability:
Out of Stock, email support@mfactors for inquiries
Shipping:
Calculated at checkout

 Product Description

The PE4C V4.1 is designed for Notebook PCs that converts PCI Express 16X Add-on Card to M.2 Card or PCIe x4 connecter with up to Gen2 speed.

This adapter allows you to use your existing PCI-E 16X Card in the notebook PC for gaming.

    Function

    • VGA card connection to computer or notebook PC
    • Support two delay switch to avoid registration problems when boot. (SW1, SW2)
    • Special foot cone, avoid graphics card fan noise.
    • Support ATX power boot together function.
    • DC Jack: External 12V Power Input.
    • Support Suspend Clock
    • Support two sets external pin to setup delay time. (J2, J3)

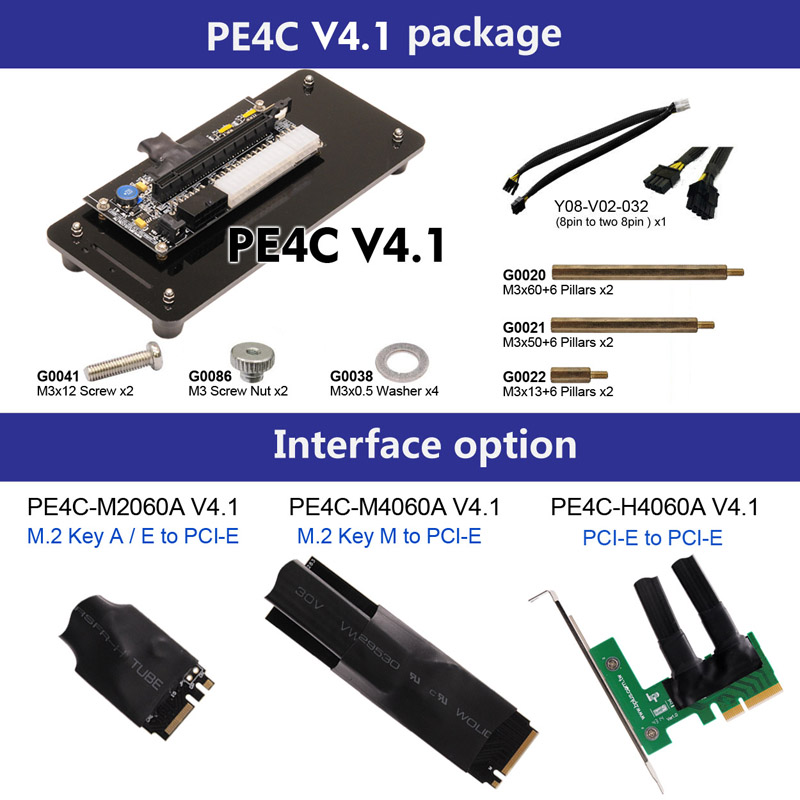

    • Option Products  :
      PE4C-M2060A V4.1  – PCI-E to M.2 Key A/E card adapter
      PE4C-M4060A V4.1  – PCI-E to M.2 Key M card adapter
      PE4C-H4060A V4.1  – PCI-E to PCI-E adapter

   Specification

    • PE4C-M2060A V4.1 allows user to test PCI Express x16 Add-in-Card on the M.2 Key A/E card slot. – Cable 60cm
    • PE4C-M4060A V4.1 allows user to test PCI Express x16 Add-in-Card on the M.2 Key M card slot.– Cable 60cm
    • PE4C-H4060A V4.1  allows user to test PCI Express x16 Add-in-Card on the PCI-e slot– Cable 60cm
    • Compliant with PCI Express 2.0 Specification: Maximum 5Gbps

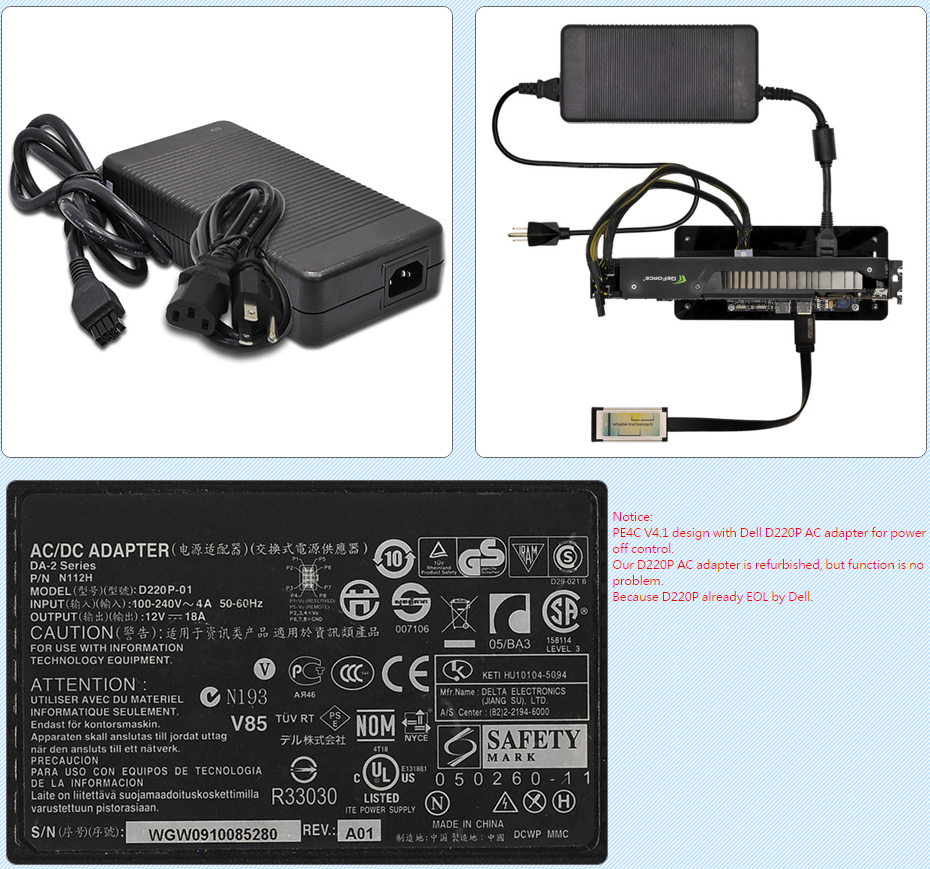

    • Power Supply: ATX PSU, 12V DC Jack adapter, 8PIN connector (for D220P AC adapter), Three select one.

   System Requirements

  • Notebook PC or Desktop PC with an available M.2 Key A/E or Key M Card slot or PCI-E slot
  • Windows, Linux

   Dimension & Weight

  • 22cm x 9.5cm x 4cm 200g

   Certifiction

  • RoHS

   Operating Temperature

  • 0 ~ 70℃

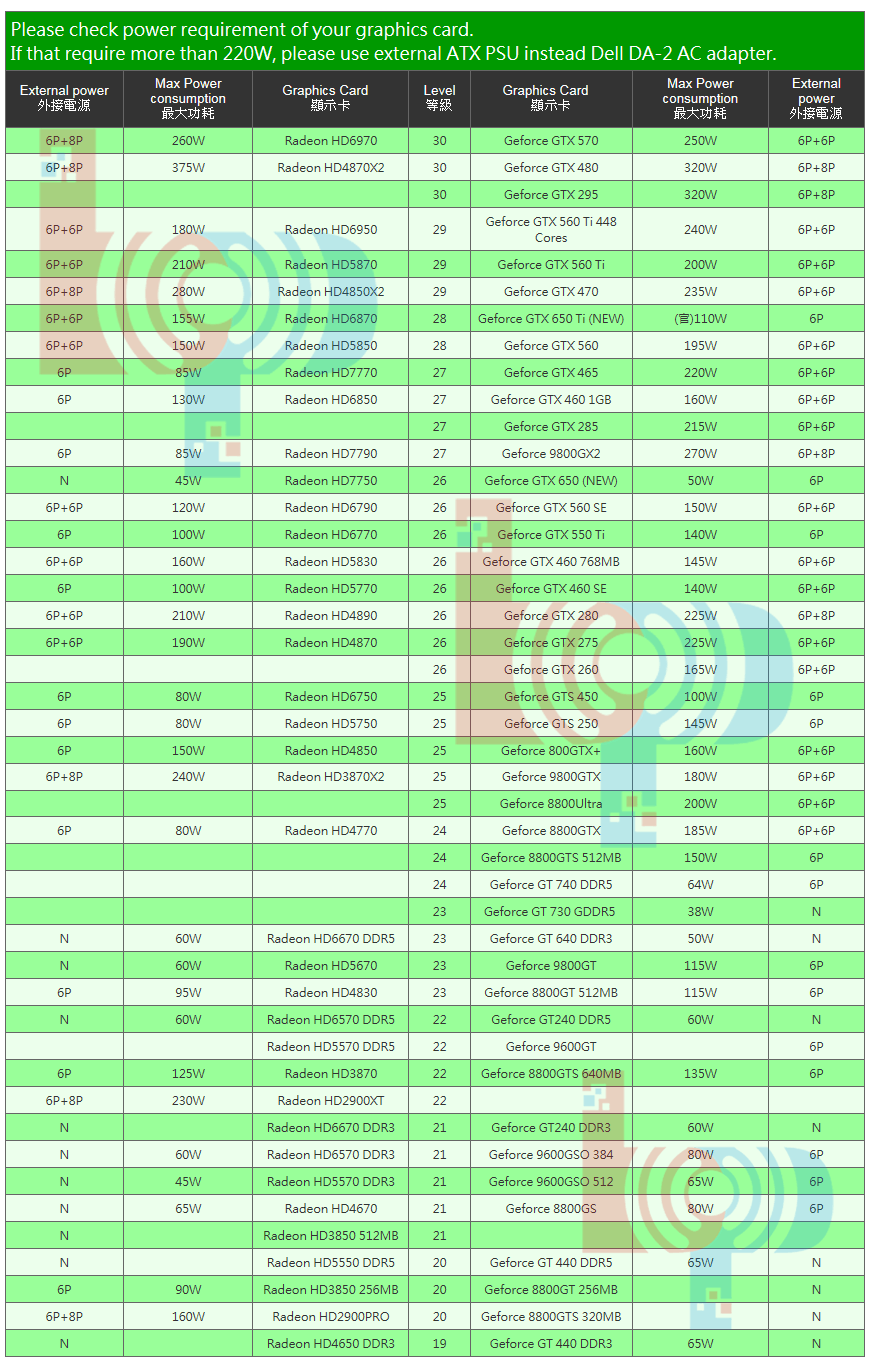

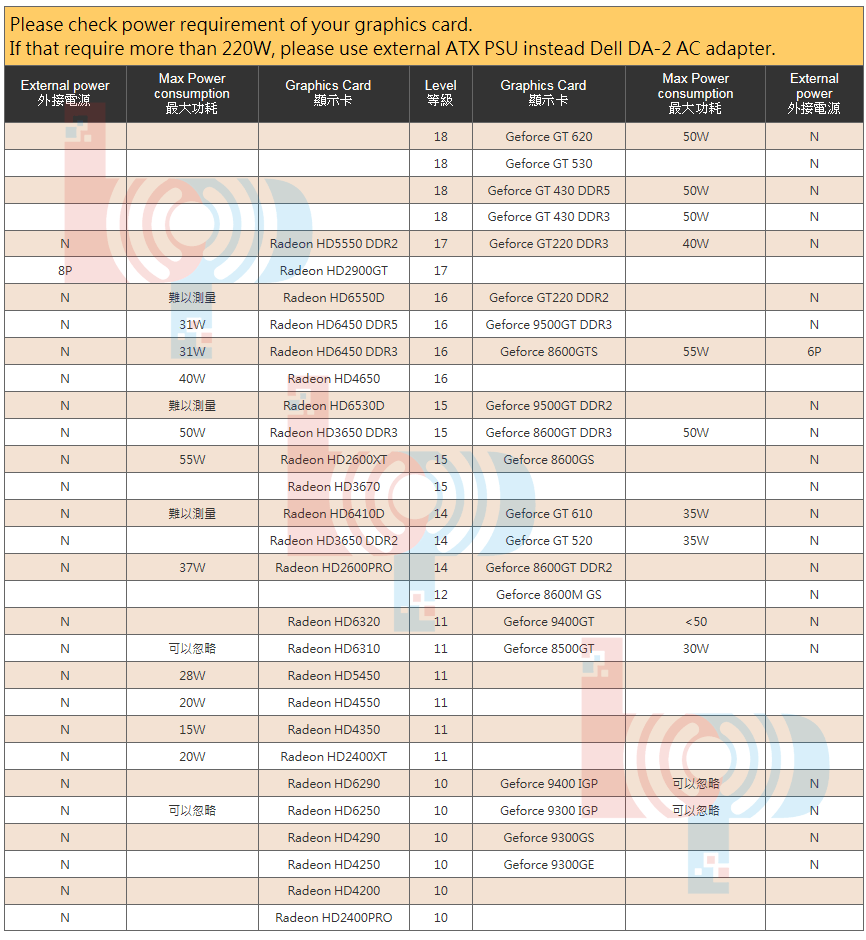

PE4C VGA Recommendation From

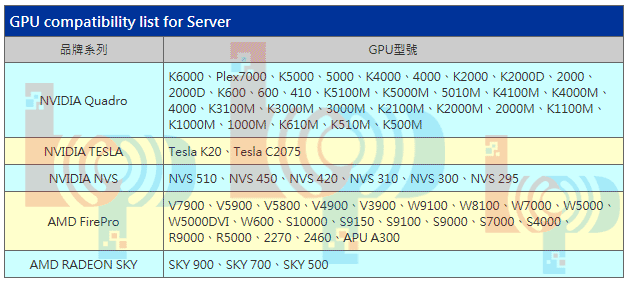

Compatibility test table






Notice


    • PE4C V4.1 is PCIe 4-Lane 5.0Gbps bandwidth limit passive adapter in compliance with M.2(NGFF) specification.
    • Basically, PCIe add-on card designed for desktop. We can’t guarantee it compatibility with your laptop. Depends on OS version, notebook’s BIOS, device driver.
    • Almost PCIe 16x video card can’t get enough memory resource are allocated. Can’t work in your laptop.
    • External Power ATX Power required.
    • All of interoperability is not guaranteed.
    • For more graphics cards experiences. Please visit web-site here.

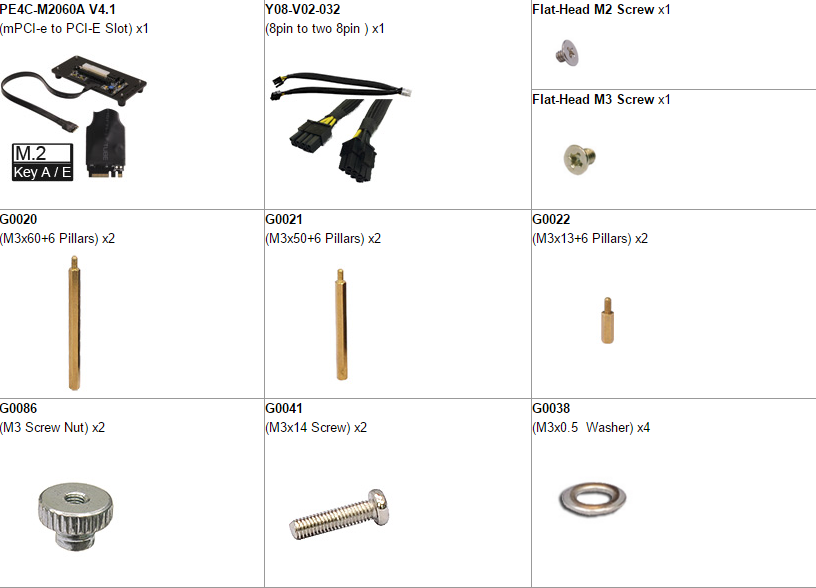

PE4C-M2060A V4.1

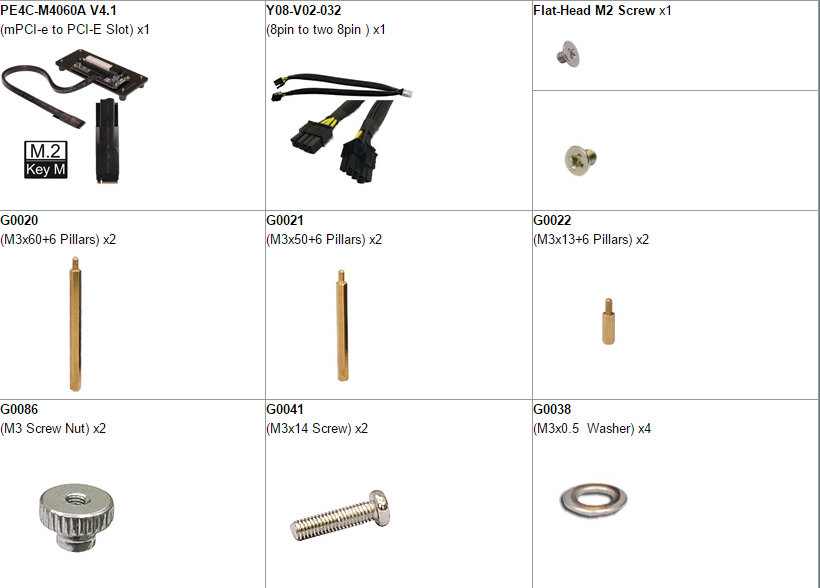

PE4C-M4060A V4.1

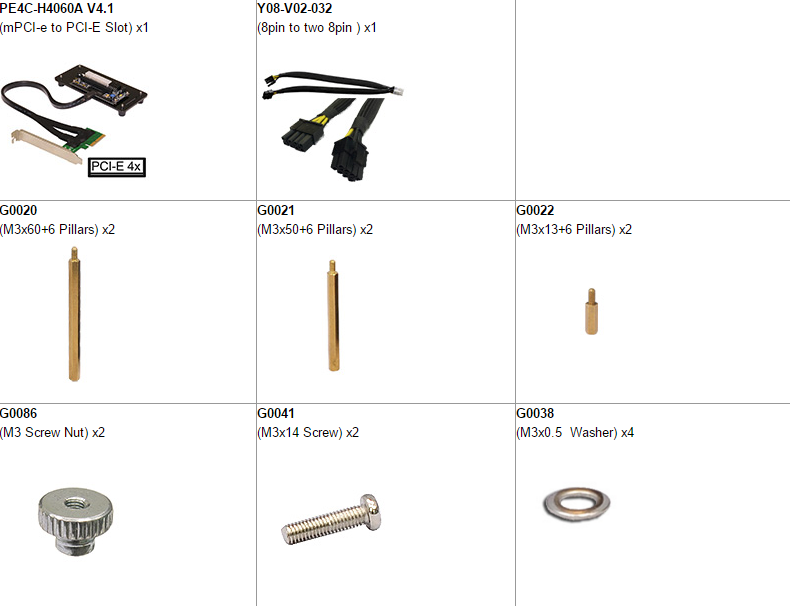

PE4C-H4060A V4.1
