PE4C V3.0 (EC060A, PM060A, HP060A)

Hover over image to zoom

  • Image 1
  • Image 2
  • Image 3
  • Image 4
  • Image 5
  • Image 6
  • Image 7
$68.00
SKU:
PE4C V3.0
Availability:
IN STOCK. Ships in 1-3 days
Shipping:
Calculated at checkout

 Product Description

The PE4C V3.0 is designed for Notebook PCs that converts PCI Express 16X Add-on Card to ExCard or mPCIe or PCIe x1 connector with up to Gen3 (8Gbps) speed.

      This adapter allows you to use your existing PCI-E 16X Card in the notebook PC for gaming.

    Function

  • VGA card connection to computer or notebook PC
  • Support two delay switch to avoid registration problems when boot. (SW1, SW2)
  • Special foot cone, avoid graphics card fan noise.
  • Support ATX power boot together function.
  • DC Jack: External 12V Power Input (Not included)
  • Support Suspend Clock (ExCard & mPCIe)
  • Support two sets external pin to setup delay time. (J2, J3)
  • Product Options :

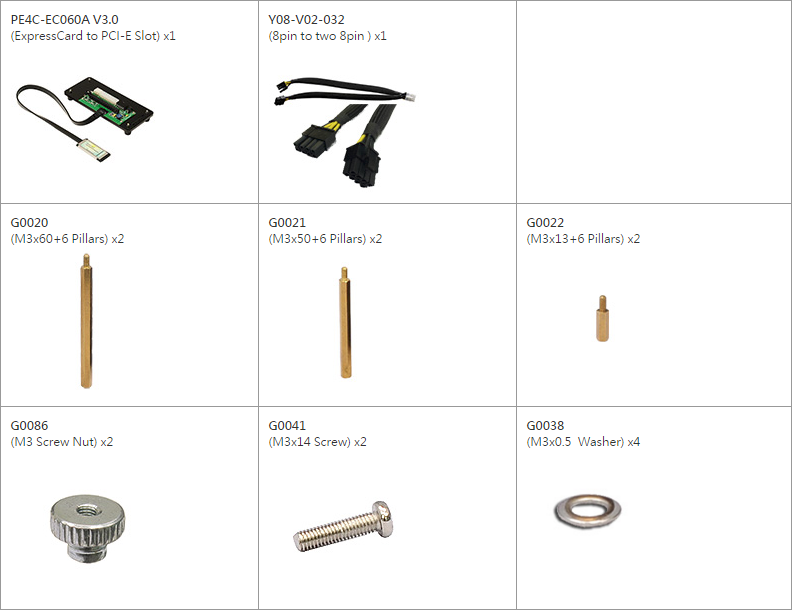

    PE4C-EC060A V3.0  –PCI-E to Express card adapter

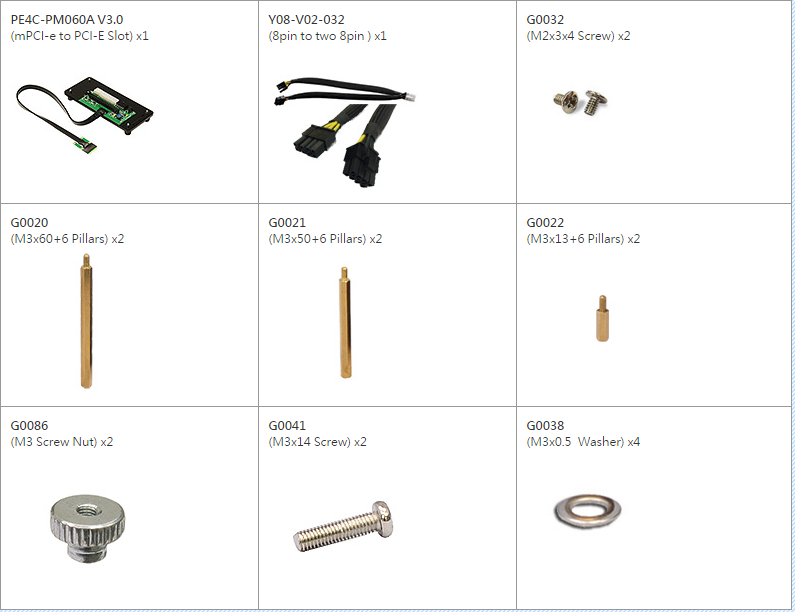

    PE4C-PM060A V3.0  –PCI-E to mPCI-e adapter
    PE4C-HP060A V3.0  –PCI-E to PCI-E adapter

   Specification

  • PE4C-PM060A V3.0 allows user to test PCI Express x16 Add-in-Card on the PCI Express mini card (mPCIe) slot. – Cable 60cm
  • PE4C-EC060A V3.0 allows user to test PCI Express x16 Add-in-Card on the Express-card slot– Cable 60cm.
  • PE4C-HP060A V3.0 allows user to test PCI Express x16 Add-in-Card on the PCI-e slot– Cable 60cm
  • Compliant with PCI Express 3.0 Specification: Maximum 8Gbps

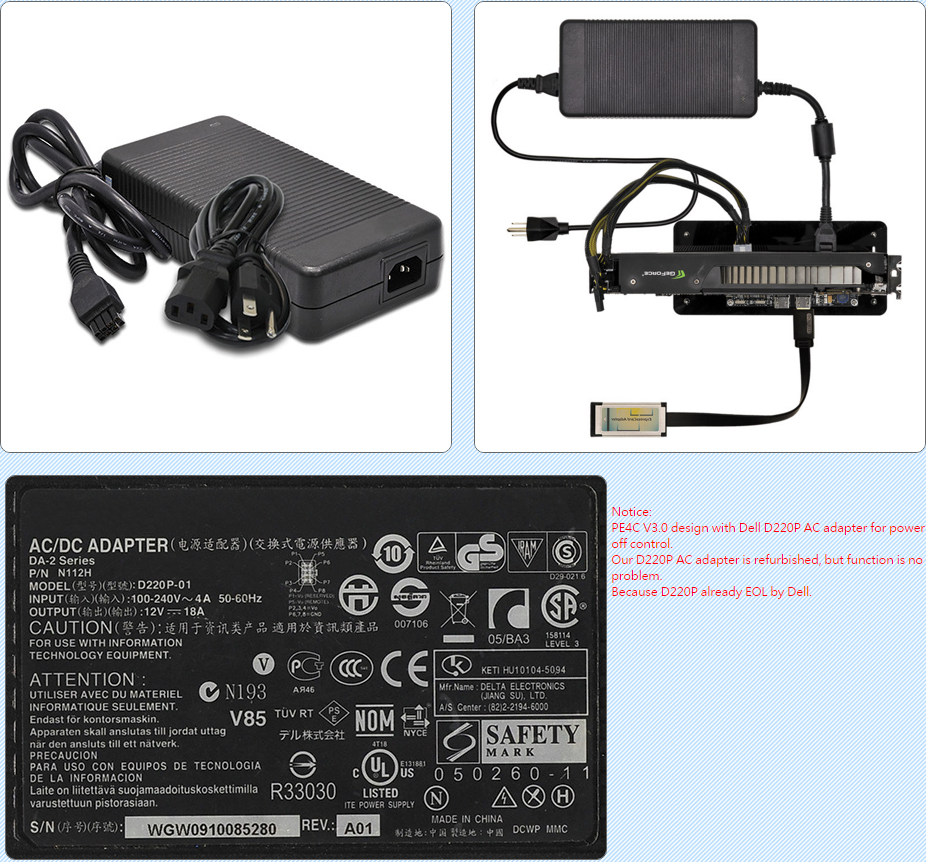

  • Power Supply: ATX PSU, 12V DC Jack adapter, 8PIN connector (for D220P AC adapter),Three select one.

   System Requirements

  • Notebook PC or Desktop PC with an available Express-card slot or PCI-E slot or PCI Express mini card slot
  • Windows 10 (32/64-bit) / Windows 8 (32-/64-bit) / 7 (32-/64-bit) / Vista (32-/64-bit) SP2 or later/ XP (32-/64-bit) SP3 or later

   Dimension & Weight

  • 22cm x 9.5cm x 4cm 200g

   Certifiction

  • RoHS

   Operating Temperature

  • 0 ~ 70℃












PE4C VGA Recommendation From





Compatibility test table






Notice


  • PE4C V3.0 is PCIe 1-Lane 8.0Gbps bandwidth limit passive adapter in compliance with Expresscard 3.0 specification.
  • Basically, PCIe add-on card designed for desktop. We can’t guarantee it compatibility with your laptop. Depends on OS version, notebook’s BIOS, device driver,
  • Almost PCIe 16x video card can’t get enough memory resource are allocated. Can’t work in your laptop.
  • External Power ATX Power required.
  • All of interoperability is not guaranteed.
  • For more graphics cards experiences. Please visit web-site here.




PE4C-PM060A V3.0


PE4C-EC060A V3.0




PE4C-HP060A V3.0
