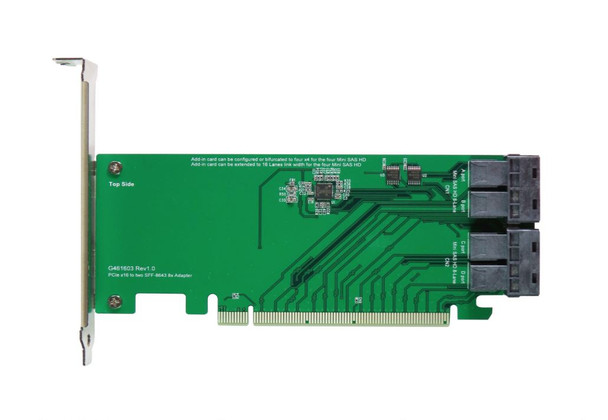

PCIe Gen3 16-lane to Mini SAS HD(SFF-8643) quad-port Adapter

Write a Review

Please contact us at support@mfactors.com for a quote

Product Overview

Feature

  • PE1602 can be bifurcated in quad x4(need CPU and BIOS both support) and x4 data link width configurations
  • PE1602 features four internal NVMe(SFF-8643) for high-perfoemace storage connectivity.
  • Build in Mini SAS HD(SFF-8643) 8x connector 2 sets, pin-out defined by SFF-9402
  • Four internal lanes per Mini SAS HD port, 3.2Gb/s per port
  • Supports four physical NVMe devices
  • Supports SFF-9402 clock pin out
  • Supports Intel define Mini SAS HD(SFF-8643) clock pin out
  • Supports SFF-9402 perst# pin out
  • Supports Intel Define Mini SAS HD(SFF-8643) perst# pin out
  • Enables the system clock signal to be used over longer trace lengths and over a cable
  • Enables the system perst# signal to be used over longer trace lengths and over a cable

Specifications

  • Compliant with NVM Express 1.2a
  • Support PCI Express Base Specification Rev 3.1
  • Support SSD_Form_Factor_Version1_a
  • Compliant with SFF-8643 Specification Version 3.5

Operating System Support

  • Vmware
  • Linux
  • Windows 8 &8.1
  • Windows 10
  • UEFI 2.3.1 or later

Application

  • Servers
  • HBA(Host Bus Adapter)
  • Data Center
  • Storage Racks
  • Storage Controller
  • Servers RAIDs(Redundant Array of Independent Disks)
  • Routers
  • Switchs
