P28S-P28F (PCI-Express to MiniCard Extender)

Write a Review
$36.00
SKU:
P28S-P28F
Availability:
Usually Ships in 3-5 business days.
Shipping:
Calculated at Checkout

Product Overview

P28S-P28F (PCI-Express to MiniCard Extender)

Introduction:

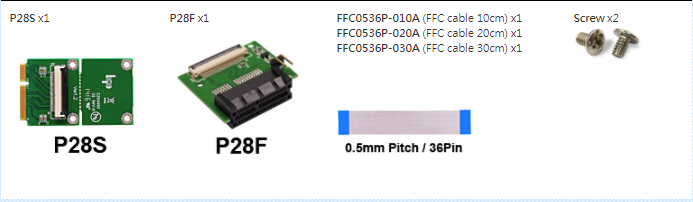

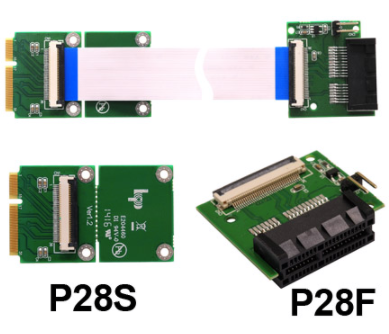

P28S-P28F Extender is a debug and test tool to extend PCI-Express slot from MiniCard (mPCIe) slot. Design the FFC (Flat Flexible Cable) cable for flexible use.
Not only for Full-size MiniCard adapter but also Half-size MiniCard by removing extra Full-size extensions.

The extender is designed to minimize the signal degradation effects of the extender by proven design techniques. It’s also a powerful tool for engineers and factory tests.

Function

  • Easy Installation, Plug and Play
  • No drivers needed for this MiniCard to ExpressCard Adapter
  • Support Windows 2000/Server 2003/XP & XP 64-bit/Vista & Vista 64-bit/ 7 & 7 64-bit
  • Supports PCI Express based MiniCard slot
  • Miscellaneous: WAKE#, PERST#
  • Support external 12V power supply by pin header

Specification

  • PCI Express™ Mini Card Electromechanical Specification Revision 1.0
  • PCI Express base Specification 1.1 (Up to 2.5Gpbs)
  • System Management Bus (SMBus) Specification, Version 1.1
  • PCI Express Card Electromechanical (CEM) Specification 1.1

**Warning:
If MiniCard slot on the host does not support PCIe interface, the interface can not be supported.
Other PCIe speed of PCIe2.0 (5Gbps)/PCIe3.0(10Gbps) is not guaranteed.




Brief Taiwan 1 Taiwan 2 China
Dimension Taiwan 1 Taiwan 2 China
3D Model Taiwan 1 Taiwan 2 China
Schematic Taiwan 1 Taiwan 2 China
Selection Guide Taiwan 1 Taiwan 2 China
