P21S-P21F (Flexible x1 PCI Express Extender)

Hover over image to zoom

  • Image 1
$38.00
SKU:
P21S-P21F
Availability:
Ships in 5-10 business days.
Shipping:
Calculated at checkout

 Product Description

P21S-P21F (Flexible x1 PCI Express Extender)

Introduction:

P21S-P21F PCI Express Extender is a debug and test tool. Design the FFC (Flat Flexible Cable) cable for flexible use.
As PCI Express x1 connector is edge-free / multi-lane, x4, x8 and x16 PCIe Cards are also available.
The PCI-Eextender is designed to minimize the signal degradation effects of the extender by proven design techniques.
It’s also a powerful tool for engineers,or use for PCI-E test protection.

OPTION: FFC0536P-050B (FFC cable 50cm)

The PCIe Tx and Rx signal is reverse between P21SR-P21FR (KZ-B21 V1.0Rand P21-P21F (KZ-B21 V1.1)

Application 1P21S-P21SR : PCIe 1X to PCIe 1X Extender

Application 2P21F-P21FR : PCIe slot (Edge Free) to PCIe Slot (Edge Free) Extender

*Blue belt: Upper Side

*Blue belt: Upper Side

 3D Model

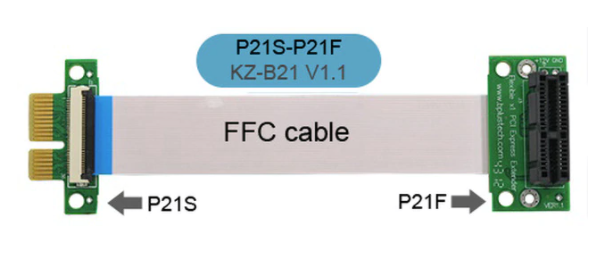

P21S-P21F

(Old P/N: KZ-B21 V1.1)

Package Contents

Unit price: US$ 38

P21S x1
P21F
 x1

with

FFC0536P-010B x1
FFC0536P-020B x1
FFC0536P-030B x1

P21SR-P21FR

(Old P/N: KZ-B21 V1.0R)

Package Contents

Unit price: US$ 38

P21SR x1
P21FR
 x1

with

FFC0536P-010B x1
FFC0536P-020B x1
FFC0536P-030B x1





FFC0536P-050B (Old P/N: KZ-B21-050)

Package Contents

Unit price: US$ 6

FFC0536P-050B (Old P/N: KZ-B21-050)

(FFC cable 50cm)x1





Documents Download
Brief   Taiwan   Taiwan 2 Mirror   China Mirror
Dimension   Taiwan   Taiwan 2 Mirror   China Mirror
Schematic   Tawan   Taiwan 2 Mirror   China Mirror
3D Model   Tawan   Taiwan 2 Mirror   China Mirror
Selection Guide   Tawan   Taiwan 2 Mirror   China Mirror
