MP2W (Mini PCI-E / PCI-E adapter ver 2.2)

Hover over image to zoom

  • Image 1
  • Image 2
  • Image 3
$62.00
SKU:
MP2W
Availability:
Ships in 5-10 business days.
Shipping:
Calculated at checkout

 Product Description

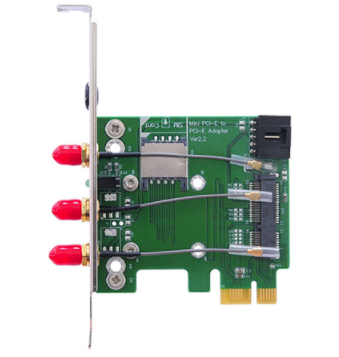

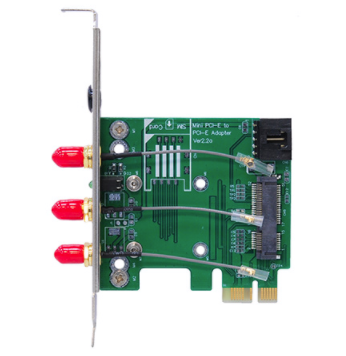

MP2W (Mini PCI-E / PCI-E adapter ver 2.2)

Introduction:

The PCI-E Mini Card passive adapter is designed for wireless application on desktop PCs that convert Mini-Card to USB port or standard PCI-Express 1x slot.
You can insert your USB type minicard to this adapter then plug to USB port through USB cable.
Or insert your PCI-E type mini-card into this adapter then insert to PCI-E 1x connector.

Features

  • PCI Express Mini Card to PCI express 1x converter.
  • Allows user to test PCI Express Mini modules on the PCI Express slot.
  • Supports two primary system bus interface: PCI Express and USB.
  • Supports all of Mini-Cards such as 3G,CDMA, WLAN,WWLAN, Mini Card to desktop PC.
  • Supports U.FL/IPX to RP- SMA pigtail WiFi RF cable adapter.(Optional)

Specification

  • PCI Express Mini Card to PCI Express/USB adapter.
  • PCI Express Mini Card Electromechanical Specification Revision 1.0
  • PCI Express Card Electromechanical Specification 1.1
  • Universal Serial Bus Specification Revision 2.0.
  • Standard Height PCI Express Add-in Card
  • Low Profile PCI Express Add-in Card.
  • Full / Half -Mini Card dimension.
  • Wireless access LED, POWER LED

Notice

  • There are existing mPCIe 'form factor' SSD's that present SATA and PATA interface, but none that use the standard mPCIepinout (i.e. mPCIe tx/rx pins).
  • MP2W support standard mPCIe minicard. Can’t support custom SATA/PATA SSD minicard.

MP2W

MP2W-S



MP2W-RPSMA V2.2

Unit Price: US$ 62

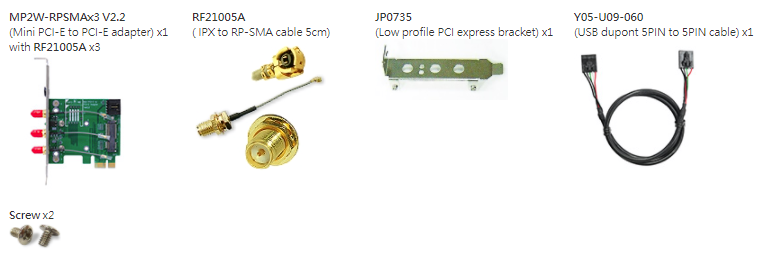

MP2W
(Mini PCI-E to PCI-E adapter) x1
with RF21005A x3
RF21005A
( IPX to RP-SMA cable 5cm)
JP0735
(Low profile PCI express bracket) x1
Y05-U2F-060
(USB dupont 5PIN to 5PIN cable) x1
Screw x2




MP2W-S-SMA V2.2

Unit Price: US$ 75

MP2W-S-SMA
(Mini PCI-E to PCI-E adapter) x1

with RF11005A x3
RF11005A
( IPX to SMA cable 5cm)
JP0735
(Low profile PCI express bracket) x1
Y02-USB-069
(USB dupont 5PIN to B mini USB 5PIN cable) x1
Screw x2




MPxx products functions comparison

MP1

MP2

MP2W

MP2A

Converts Mini-Card to USB port or standard PCI-Express 1x slot.

Supports Standard Height PCI Express bracket

Supports Low Profile PCI Express bracket





Support Full-Mini Card dimension

Support Half-Mini Card dimension



Add u.FL/IPX to RP-SMA pigtail WiFi RF cable





Add SIM card connector











MP2W Brief V2.2   Taiwan 1   Taiwan 2 Mirror   China Mirror
MP2W-S Brief V2.3   Taiwan 1   Taiwan 2 Mirror   China Mirror
Dimension V2.13 Taiwan 1 Taiwan 2 China
MP2W Schematic Taiwan 1 Taiwan 2 China
MP2W-S Schematic Taiwan 1 Taiwan 2 China
User manual Taiwan 1 Taiwan 2 China
PCIE WiFiCardsSelection Guide Taiwan 1 Taiwan 2 China
