MP230 (SD / SDHC / SDIO Card Reader)

Hover over image to zoom

  • Image 1
$150.00
SKU:
MP230
Availability:
Ship in 1-3 business days
Shipping:
Calculated at checkout

 Product Description

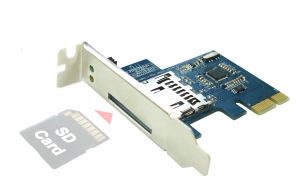

MP230 (SD / SDHC / SDIO Card Reader)

Introduction:

SD card to Add-on card adapter design for high speed SDHC cards and SDIO cards. You can easily add SD card to your Desktop PC PCI-E slot.

Specification

  • Compliant with ExpressCard 1.0 specification.
  • Compliant with PCI Express Base Specification rev 1.1
  • Compliant with SD Memory Card Specification Version 2.0
  • Support SD High Capacity (SDHC)
  • Compliant with SD Input / Output (SDIO) Card Specification Version 2.0
  • Compliant with SD Host Controller Standard Specification Version 2.0
  • Compliant with MMC MultiMediaCard Specification Version 4.1
    1. Supports MMC Plus and MMC Mobile. (4bit only)

Box Contents:

MP230 (SD / SDHC / SDIO Card Reader) x1
Low profile PCI express bracket x1

System Requirements

  • Desktop PC with PCIe slot.
  • Windows 7 (32-/64-bit) / Vista (32-/64-bit) SP2 or later/ XP (32-/64-bit) SP3 or later

Notice

  • To use SD / SDHC Cards on Windows XP/VISTA/7 your system requires install RICOH private driver for more compatibility (download here). Otherwise your SD cards can’t work properly.
  • To use SDIO wireless Cards on Windows 7, your system requires choose Microsoft SDA host inbox driver. And SP1 Update or Windows 7 (KB983177) hotfix update.
  • To use SD / SDHC Memory Card Formatting Software, Please download file from SDCARD.org web-site as below:
    http://www.sdcard.org/consumers/formatter_3/

    Please backup your data before using the formatting program.

  SDIO Compatibility List
Brand
Model
Chip
Compatibility
MR04R
EC220-IO
EC230
MP230
miniPCI-e
ExpressCard
ExpressCard
Add-on card
Atheros SD25 AR6102
Pass
Pass
Pass
Pass
Atheros SD27 AR6102
Pass
Pass
Pass
Pass
Atheros SD31 AR6003
Pass
Pass
Pass
Pass
Atheros SD32 AR6003
Pass
Pass
Pass
Pass
Atheros WB31 AR6003+AR3001
Pass
Pass
Pass
Pass
Atheros SD31B AR6003
Pass
Pass
Pass
Pass
Atheros SD32B AR6003
Pass
Pass
Pass
Pass
SPIL AF-N-30G AR6003
Pass
Pass
Pass
Pass
USI WM-AN-AT-01 AR6003
Pass
Pass
Pass
Pass
USI WM-BN-AQ-01 AR6003
Pass
Pass
Pass
Pass
ASE SAT11C AR6003
Pass
Pass
Pass
Pass
Brand
Model
Chip
miniPCI-e
ExpressCard
ExpressCard
Add-on card
MR04R
EC220-IO
EC230
MP230
Notice

EC220-IO setting SD_CLK to low speed for more SDIO cards compatibility.
To use SDIO wireless Cards on Windows 7, your system requires choose Microsoft SDA host inbox driver. And SP1 Update or Windows 7 (KB983177) hotfix update.



MP230 Ver1.0
Mother board: ASUS M2NPV-VM
System : win7 SP1 32 bit          Test Tools : CrystalDiskMark2.2
CPU: AMD Athton 64 X2 Dual core Procossor 3800+ 2.00GHz RAM: 1.98GB

MP230 TEST 1
Driver: SDA Standard Compliant SD Host Controller
TOSHIBA
Class 10 SDHC
8GB
TOSHIBA
UHS-1 SDXC
64GB
SanDisk SDHC
Class UHS-1
8GB
Read (MB/S)
22.08 MB/S
22.08 MB/S
22.08 MB/S
Write (MB/S)
18.50 MB/S
12.75 MB/S
20.21 MB/S

MP230 TEST 2
Driver: Ricoh PCIe SD/MMC Host Controller
TOSHIBA
Class 10 SDHC
8GB
TOSHIBA
UHS-1 SDXC
64GB
SanDisk SDHC
Class UHS-1
8GB
Read (MB/S)
21.38 MB/S
21.37 MB/S
21.06 MB/S
Write (MB/S)
17.77 MB/S
12.67 MB/S
19.61 MB/S



MP230 Special design



1.RICOH R5U230 PCIe bridge controller.
2.Serial EEPROM for code upgradeable.
3.Hi quality SD push-push connecter.



MP230

Package Contents


Unit price: US$ 150

MP230
(SD / SDHC / SDIO Card Reader) x1

JP0138
(Standard Height PCI express bracket) x1



Documents Download
MP230 Brief  Taiwan  Taiwan 2 Mirror  China Mirror
Dimension  Taiwan  Taiwan 2 Mirror  China Mirror
Schematic  Taiwan  Taiwan 2 Mirror  China Mirror
SD cardreader comparison  Taiwan  Taiwan 2 Mirror  China Mirror
Test Report  Taiwan  Taiwan 2 Mirror  China Mirror
SDIO Compatibility   Taiwan   Taiwan 2 Mirror   China Mirror
To use SD / SDHC Cards on Windows XP/VISTA/7 your system requires install RICOH private driver for more compatibility (download here). Otherwise your SD cards can’t work properly
To use SDIO wireless Cards on Windows 7, your system requires choose Microsoft SDA host inbox driver. And SP1 Update or Windows 7 (KB983177) hotfix update.
To use SD / SDHC Memory Card Formatting Software, Please download file from SDCARD.org web-site as below:
http://www.sdcard.org/consumers/formatter_3/
Please backup your data before using the formatting program.
