B4490A-DB32 (SIM to SIM/ Full Size SIM Extender)

Hover over image to zoom

  • Image 1
  • Image 2
  • Image 3
  • Image 4
  • Image 5
  • Image 6
  • Image 7
Email support@mfactors.com to order
SKU:
B4490A-DB32
Availability:
Usually ships in 2-5 days

 Product Description

B44 Series (SIM to SIM/Full Size SIM Extender)

Introduction:

B44 Series SIM to SIM or Full Size SIM card Extender is a debug and test tool. Design the FFC cable for flexible use.
It allows a SIM Card to be extended from the host slot for SIM interface.
It’s especially designed to save valuable labor and time in the production environment. The SIM extender is designed to minimize the signal degradation effects of the extender by proven design techniques.

It’s also a powerful tool for engineers, or use for mobile phone SIM test protection.

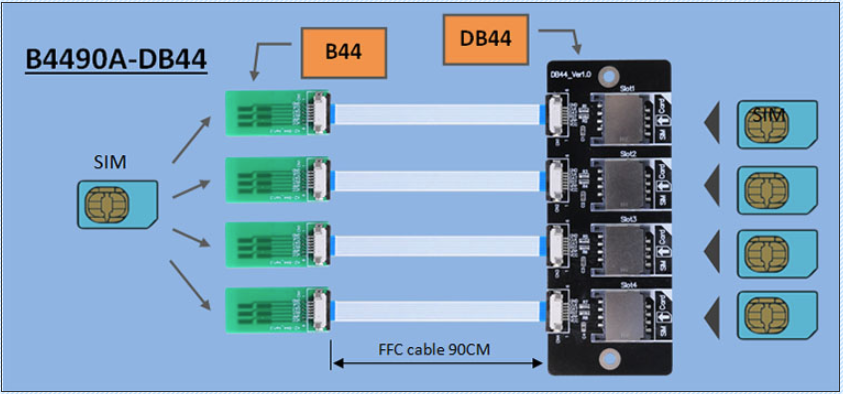

B4490A-DB44

Unit Price: USD 92

B44

(SIM board) x4

DB44

(Quad SIM daughter board) x1

FFC1006P-090A

(FFC cable 90cm) x4

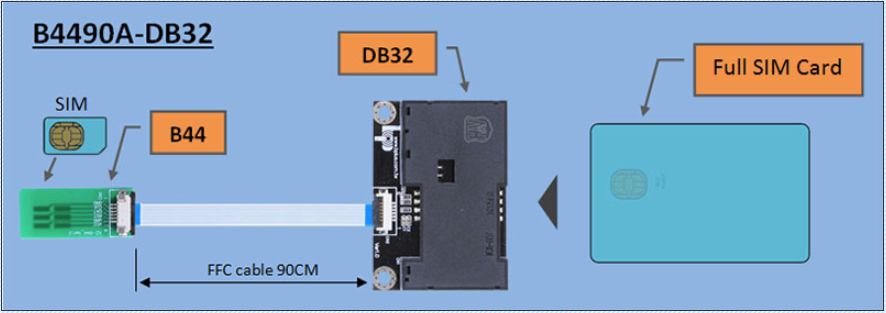

B4490A-DB32

Unit Price: USD 32

B44

(SIM board) x1

DB32

(full size SIM daughter board) x1

FFC1006P-090A

(FFC cable 90cm) x1

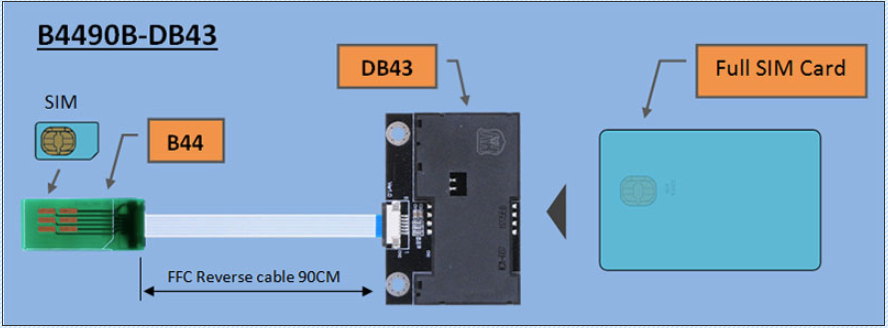

B4490B-DB43

Unit Price: USD 32

B44

(SIM board) x1

DB43

(full size SIM daughter board) x1

FFC1006P-090B

(FFC Reverse cable 90cm) x1




Brief Taiwan 1 Taiwan 2 China
Dimension Taiwan 1 Taiwan 2 China
B4490B-DB43
3D Model
Taiwan 1 Taiwan 2 China
Schematic Taiwan 1 Taiwan 2 China

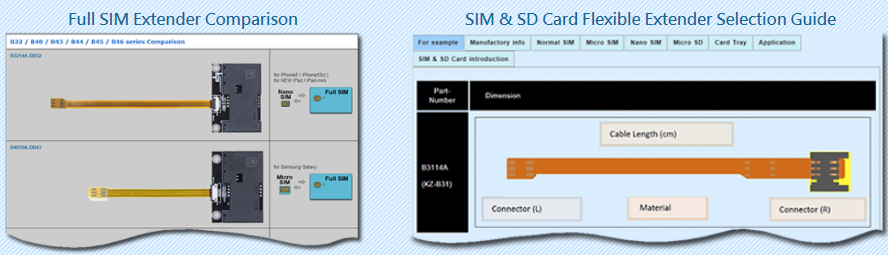

Selection Guide Taiwan 1 Taiwan 2 China
