B3114A (Nano SIM to SIM Card Extender)

Write a Review
Usually Ship in 2-5 business days
Calculated at Checkout

Product Overview

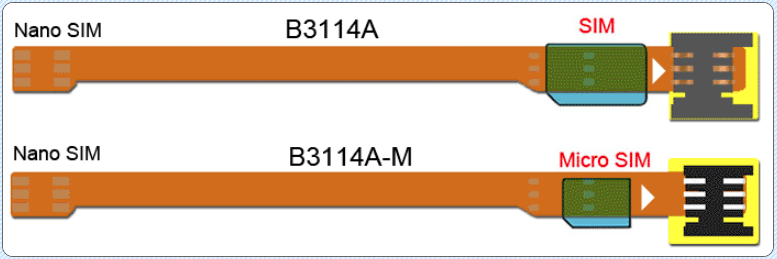

B31 Series (Nano SIM to SIM Card Extender)

B31 Series nano SIM card Extender is a debug and test tool especially for iPhone5. Design the FPC
cable for flexible use.

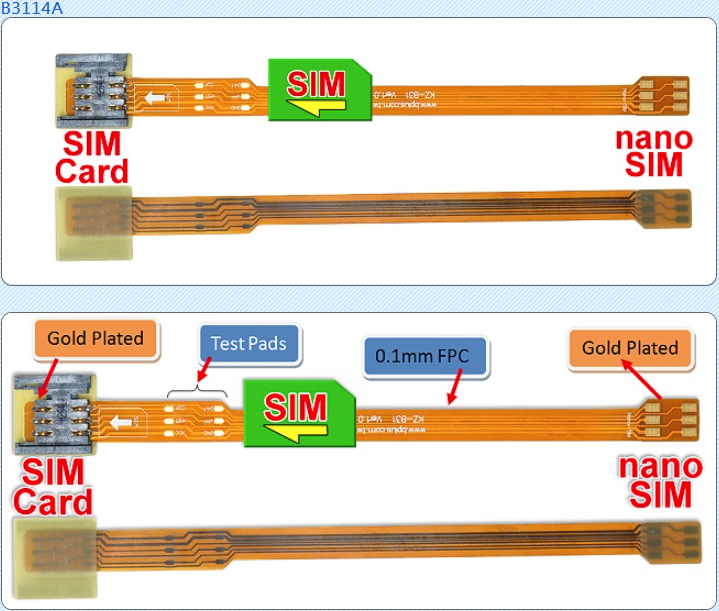

It allows a nanoSIM Card to be extended from the host slot for SIM interface. As thickness of FPC is
0.1mm, KZ-B31 can be routed through narrow slit between body and cover case.
It’s especially designed to save valuable labor and time in the production environment with test pads
for SIM card signals. The SIM extender is designed to minimize the signal degradation effects of the
extender by proven design techniques.
It’s also a powerful tool for engineers,or use for mobile phone SIM test protection.


   CT21:nano SIM Adapter (Option)

   CT22 + B31: Option for iPhone5 Card Tray


 B3114A (Old P/N: KZ-B31)

 Package Contents

 Unit price: US$ 24

 B3114A  (Old P/N: KZ-B31)

 (nano SIM to SIM Card Extender) X1



Documents Download
Brief   Taiwan   Taiwan 2 Mirror   China Mirror
Dimension   Taiwan   Taiwan 2 Mirror   China Mirror
3D Model   Taiwan   Taiwan 2 Mirror   China Mirror
Schematic (PDF):   Tawan   Taiwan 2 Mirror   China Mirror
Selection Guide   Tawan   Taiwan 2 Mirror   China Mirror
